Heater for Panel Board

Basic Information
  1. Model THG140,THGL046
  2. Fitting Position Vertical
  3. Specification We list the table as below.

Product Description

Application

THG140 heaters are used in enclosures which need to be prevented from humidity or which specified temperature should not be lower than minimum value. The aluminium profile design of body forms stack effect so the products release heat smoothly. The pressure clamp connectors makes the installation easier and quicker.

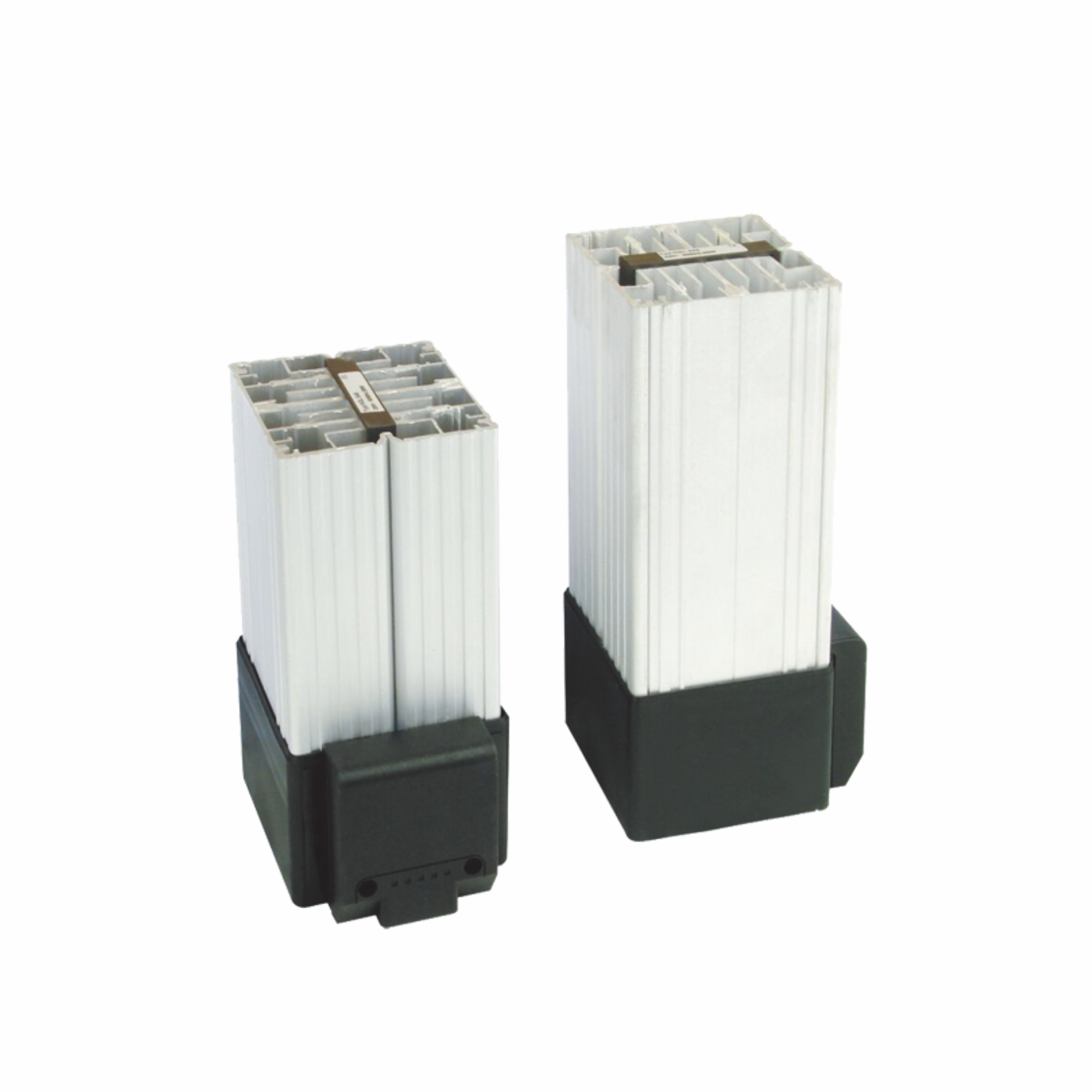

THGL046 compact fan heaters are used in enclosures which need to be prevented from humidity. High performance axial fan provides strong air circulation and ensures steady temperature in the enclosure, so the internal connection will be safer.

Specification

Model THG140 THGL 046
Heating Capacity 15W 30W 45W 60W 75w 100W 150W 250W 400w
Operating Voltage 120-250V 230V AC
Heating Element PTC resistor, self regulating and temperature limiting
Heating Body Anodized extruded aluminum profile
Temperature Safety Cut-out Protect against overheating under fan failure
Axial Fan(ball Bearing)

Airlow, free flow

AC: 45m³ /n(50Hz) or 54m³ h(60Hz)

DC: 54m³ /h

Service lie 5000h at 25°C (77°F)

Connection Internal connection terminal 1. 5mm² with strain relief clamping torque 0.8Nm max
Connection Casing 3 pressure clamps for stranded wire 0.5-1 .5mm² (with wire and ferrule) and rigid wire 0.5-2.5mm² plastic according to UL94 V-0, black Plastic according to UL94 V-0, black
Mounting Clip for 35mm DIN rail, EN 50022
Fitting Position Vertical
Operating / Storage Temperature -45to +70°C (-49to +158°F)
Protection Class IP20/I (earthed)

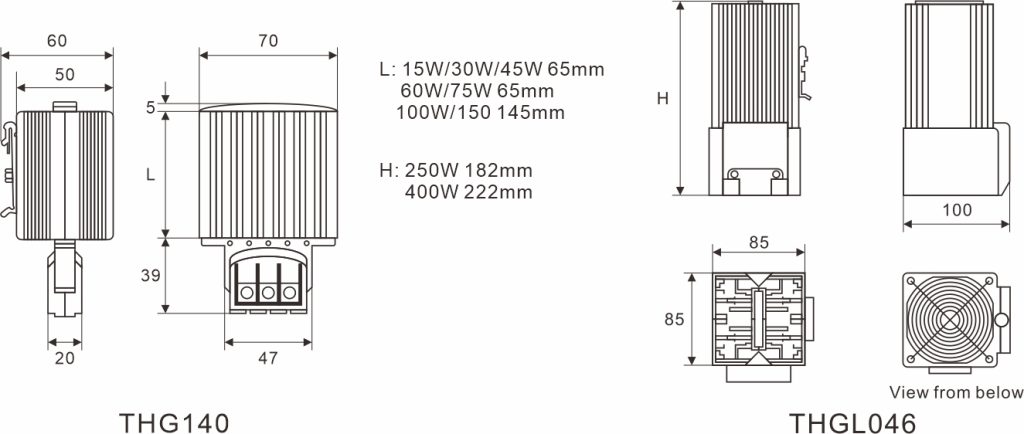

Dimension
