KE Terminal Block

Basic Information
  1. Model HFW

Product Description

Specification

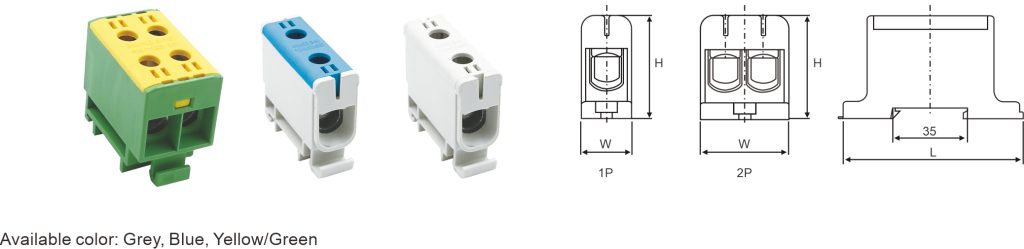

Model Pole Tighten torque(Nm) Nominal Current(A) Nominal Voltage(V) WxHxL
KE60 1 pole AI/Cu1.5-16mm² 1.5Nm(1.5mm²)    3.5Nm(2.5-6mm²)    7Nm(10-16mm²) 85A 690V 13.5x40x42
KE61 1 pole AI/Cu2.5-50mm² 4Nm(2. 5-4mm²)      12Nm(6-50mm²) Cu 160A AI 145A 750V 17.8x43x49
KE62 1 pole AI/Cu16-95mm² 20Nm Cu 245A AI 220A 750V 24 x49 x86
KE63 1 pole AI/Cu30-150mm² 14Nm(35 -95mm²) 24Nm(120-150mm²) Cu 320A AI 290A 750V 29.5x 59  x 95
KE64 1 pole AI/Cu35-240mm² 12Nm(35- 70mm²)    40Nm(95 -240mm²) Cu 425A AI 380A 750V 37.5 x 67 x 130
KE65 2 pole AI/Cu2. 5-35mm² 3Nm(2 .5-16mm²)       6Nm(25 -35mm²) Cu 135A AI 120A 1000V 27 x40 x46
KE66 2 pole AI/Cu2. 5-50mm² 4Nm(2. 5-4mm²)       12Nm(6-50mm²) Cu 160A AI 145A 750V 29.8 x 43 x 49
KE67 2 pole AI/Cu16-95mm² 20Nm Cu 245A AI 220A 750V 42 x49x 86
KE68 2 pole Al/Cu35-150mm² 20Nm(35 -95mm²) 30Nm(120- 150mm²) Cu 320A AI 290A 750V 51.5x 59 x95
KE69 2 pole Al/Cu35-240mm² 12Nm(35-70mm²)     45Nm(95 -240mm²) Cu 425A AI 380A 750V 64 x67x130
