Asymmetric Cycler Time Relay TRT8

Basic Information
  1. Switching voltage 250VAC/24VDC
  2. Reset time max.200ms

Product Description

Applications
For gradual switching of heavy powers(e.g.el.heating), prevents current strokes in the main.

Feature

2x Delay ON(2 time relays in one)
Time scale 0.1s-100 days divided into 10 time ranges:
0.1s-1s/1s-10s/0.1min-1min/1min-10min/0.1h-1h/1h-10hrs/0.1day-1day/1day-10days/
ON/OFF.
Time t1 and t2 are independently adjustable.
t1 and t2 are swithed on after supply voltage connection.
Relay status is indicated by LED.
1-MODULE,DIN rail mounting.


Technical Parameters

Model TRT8-S1 TRT8-S2
Function Asymmetric cycler time relay
Supply terminals A1-A2
Voltage range W240 AC/DC 12-240V(50-60Hz)
uaping AC 0.09-3VA/DC 0.05-1.7W
Voltage range A230 AC 230V(50-60Hz)
Power input AC max.6VA/1.3W AC max.6VA/1.9W
Supply voltage tolerance -15%;+10%
Supply indication Green LED
Time ranges 0.1s-100days
Time setting Potentionmeter
Time deviation 10%-mechanical setting
Repeat accuracy 0.2%-set value stability
Temperature coefficient  0.05%/℃,at=20°C(0.05%°F,at=68°F)
Output 1xSPDT 2xSPDT
Current rating 1x16A(AC1) 2x16A(AC1)
Switching voltage 250VAC/24VDC
Min.breaking capacity DC 500mW
Output indication Red LED
Mechanical life 1×10000000
Electrical life(AC1) 1×100000
Reset time max.200ms
Operating temperature  -20℃ to +55℃(-4℉ to 131℉)
Storage temperature  -35°℃ to +75°C(-22℉ to 158℉)
Standards EN 61812-1,IEC6947-5-1

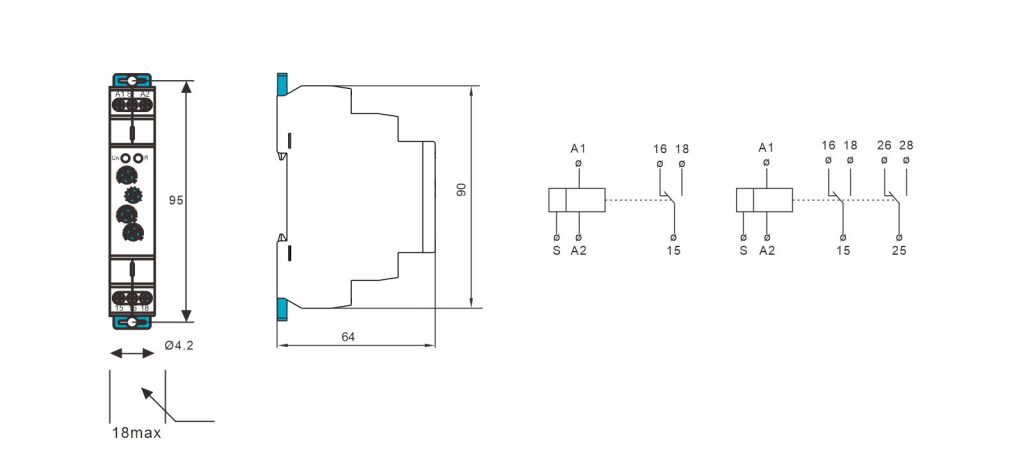

Dimension
