Bridge Rectifier

Basic Information
  1. Model MDK,MD
  2. IF(AV) 25~500

Product Description

Specification

Model IF(AV) VR RM IRRM VFM @IFM IF(RMS) Tjm Viso Dimensions
A V mA V A A °c V(AC) mm

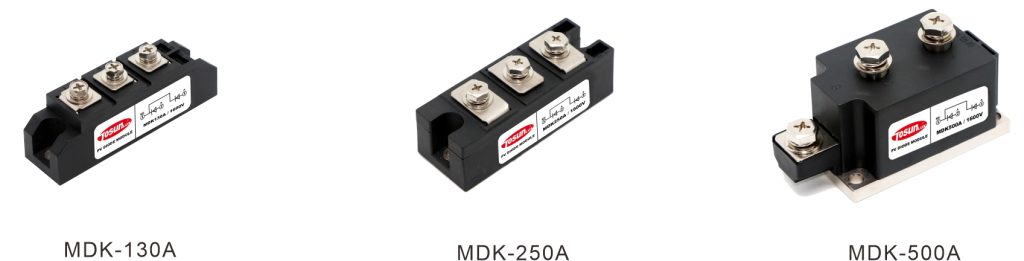

MDK25A-16 25 500-2500 8 1.1 80 41 150 2500 92*20*35.5
MDK55A-16 55 500-2500 8 1.1 170 86 150 2500 92*20*35.5
MDK70A-16 70 500-2500 8 1.1 270 110 150 2500 92*20*35.5
MDK90A-16 90 500-2500 8 1.1 270 141 150 2500 94*25*37
MDK110A-16 110 500-2500 8 1.1 330 173 150 2500 94*25*37
MDK130A-16 130 500-2500 12 1.1 410 212 150 2500 94*25*37
MDK160A-16 160 500-2500 12 1.1 480 251 150 2500 94*34*35.5
MDK200A-16 200 500-2500 12 1.1 600 314 150 2500 94*34*35.5
MDK250A-16 250 500-2500 12 1.1 750 393 150 2500 94*34*35.5
MDK300A-16 300 500-2500 20 1.1 900 471 150 2500 115*53*53
MDK400A-16 400 500-2500 30 1.1 1050 550 150 2500 115*53*53
MDK500A-16 500 500-2500 40 1.1 1500 785 150 2500 115*53*53

Specification

Model IF(AV) VR RM IRRM VFM @IFM IF(RMS) Tjm Viso Dimensions
A V mA V A A *C V(AC) mm

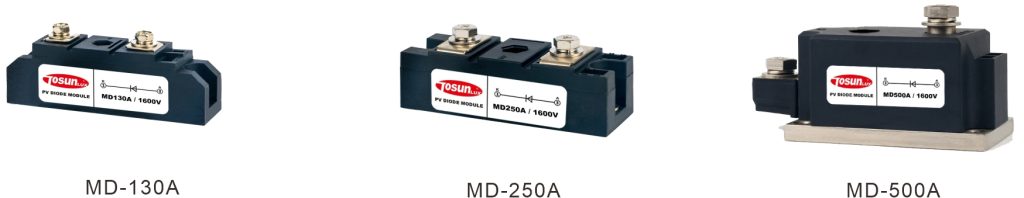

MD25A-16 25 500-2500 8 1.1 80 41 150 2500 92*20*35.5
MD55A-16 55 500-2500 8 1.1 170 86 150 2500 92*20*35.5
MD70A-16 70 500-2500 8 1.1 270 110 150 2500 92*20*35.5
MD90A-16 90 500-2500 8 1.1 270 141 150 2500 94*25*37
MD110A-16 110 500-2500 8 1.1 330 173 150 2500 94*25*37
MD130A-16 130 500-2500 12 1.1 410 212 150 2500 94*25*37
MD160A-16 160 500-2500 12 1.1 480 251 150 2500 94*34*35.5
MD200A-16 200 500-2500 12 1.1 600 314 150 2500 94*34*35.5
MD250A-16 250 500-2500 12 1.1 750 393 150 2500 94*34*35.5
MD300A-16 300 500-2500 20 1.1 900 471 150 2500 115*53*53
MD400A-16 400 500-2500 30 1.1 1050 550 150 2500 115*53*53
MD500A-16 500 500-2500 40 1.1 1500 785 150 2500 115*53*53
