Cable Clip

Basic Information
  1. Model R/F

Product Description

·PE(white, grey), elasticity and shock resistance.
·Inserting type, nail attached in clips.
·Save time and cost

Specification

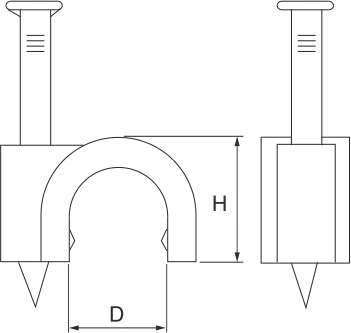

Round Nail Clips

Model H D Nail
R-3.5MM 4.5 3.5 1.7×14
R-4MM 5 3.6 1.7×15
R-5MM 6 4.5 1.7×15
R -6MM 7 5.8 1.7×15
R-7MM 8.2 6, 5 1.7×16
R-8MM 9 7.5 1.8×16
R-9MM 10:2 8:6 1.9×18
R-10MM 10.4 9.4 1.9×18
R-12MM 14 11 2.0×21
R-14MM 16 12.5 2.2×24
R-16MM 17.4 14.5 2.2×24
R-18MM 18.5 16 2.2×24
R-20MM 21 18 2.5×37
R-22MM 23 20 2.5×37
R-25MM 26 22 2.5×41
R-30MM 32.8 27.5 2x(2.9×51)
R-32MM 35.6 32.0 2x(3.2×51)
R-35MM 36.6 35.0 2x(3.5×60)
R-40MM 45.2 40.0 2x(3.5×65)

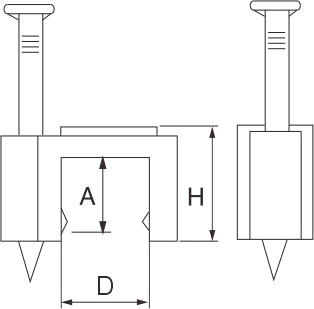

Flat Nail Clips

Model H A D Nail
F-5MM 5.1 3.6 5 1.7×14
F-6MM 5.2 4.0 5.4 1.7×14
FE-7MM 5.8 4.0 6.5 1.8×15
F-8MM 6.6 4.7 7.5 1.8×15
F-9MM 68 5.3 8.2 1.8×15
F-10MM 73 5.5 9.5 1.8×18
F-12MM 7.5 5.5 11 1.9×18
F-14MM 7.5 5.5 13 1.9×18
