CAT5e LAN Cable

Basic Information
  1. Type UTP/FTP/SFTP/UTP outdoor

Product Description

Description

Bare copper or CCA conductor

HDPE insulation

Rip cord(optional)

Lead free PVC,PE or LSOH jaket

Rated temperature:60℃,75℃

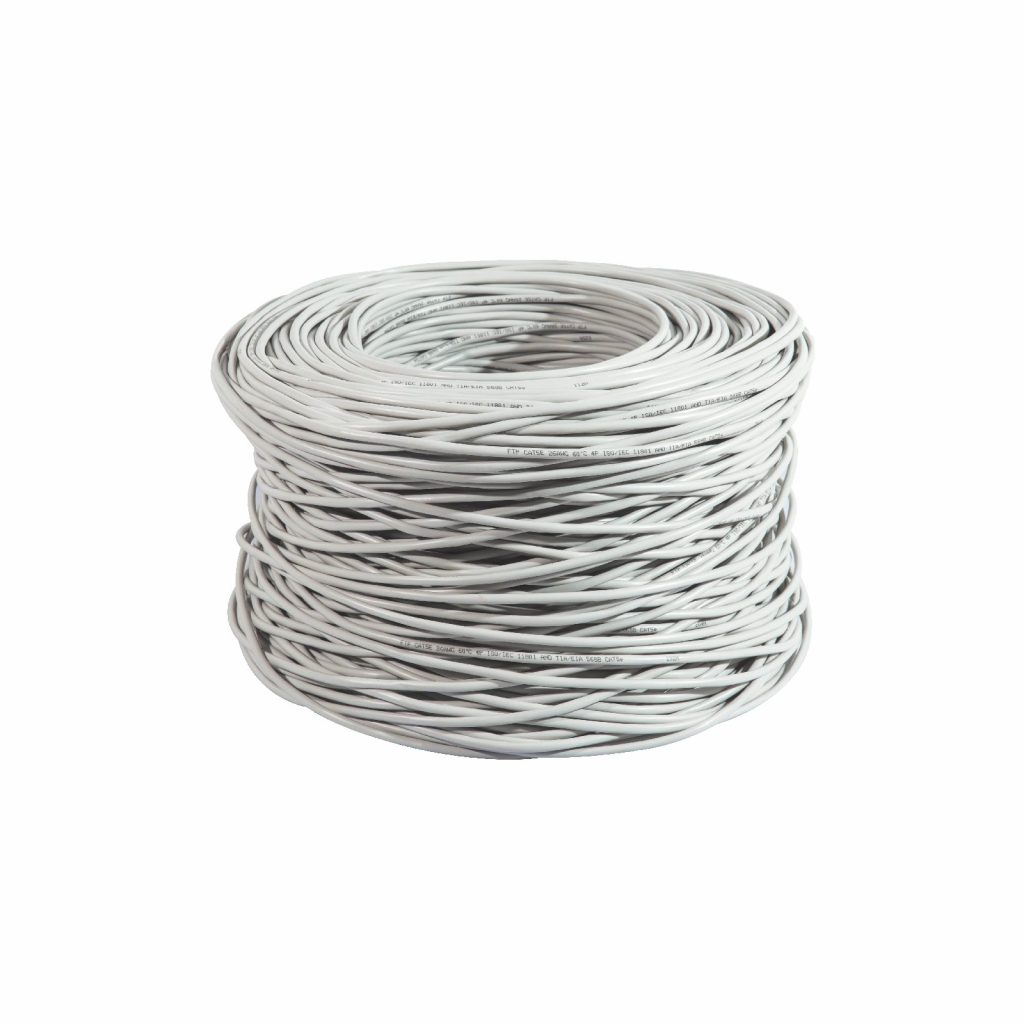

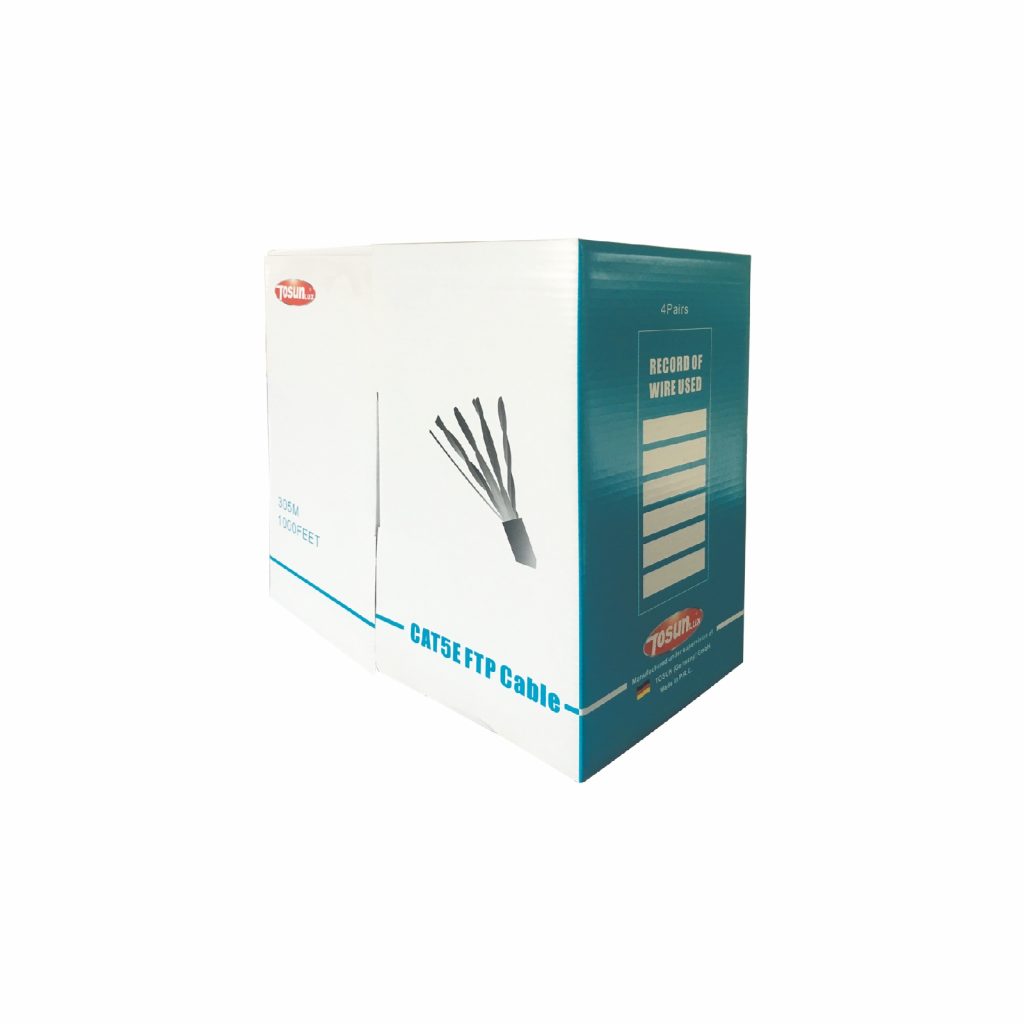

Easy-pull box or Spool Packing

Reference standard:ISO/IEC 11801.

ANS/TIA/EIA-568B/568A.UL444

Application

Used as work station out the 100Base-TX;

100VG-Any;100 Base-T(Gigabi Etherent);155Mbps ATM;622Mbps ATM

Construction

Type Conductor O.D.  Insulation O.D. Rip Cord Jacket O.D.
UTP ∅0.50 HDPE∅0.93 Yes PVC ∅5.1
FTP ∅0.50 HDPE∅0.93 AI Foil+ Drain Wire PVC ∅6.3

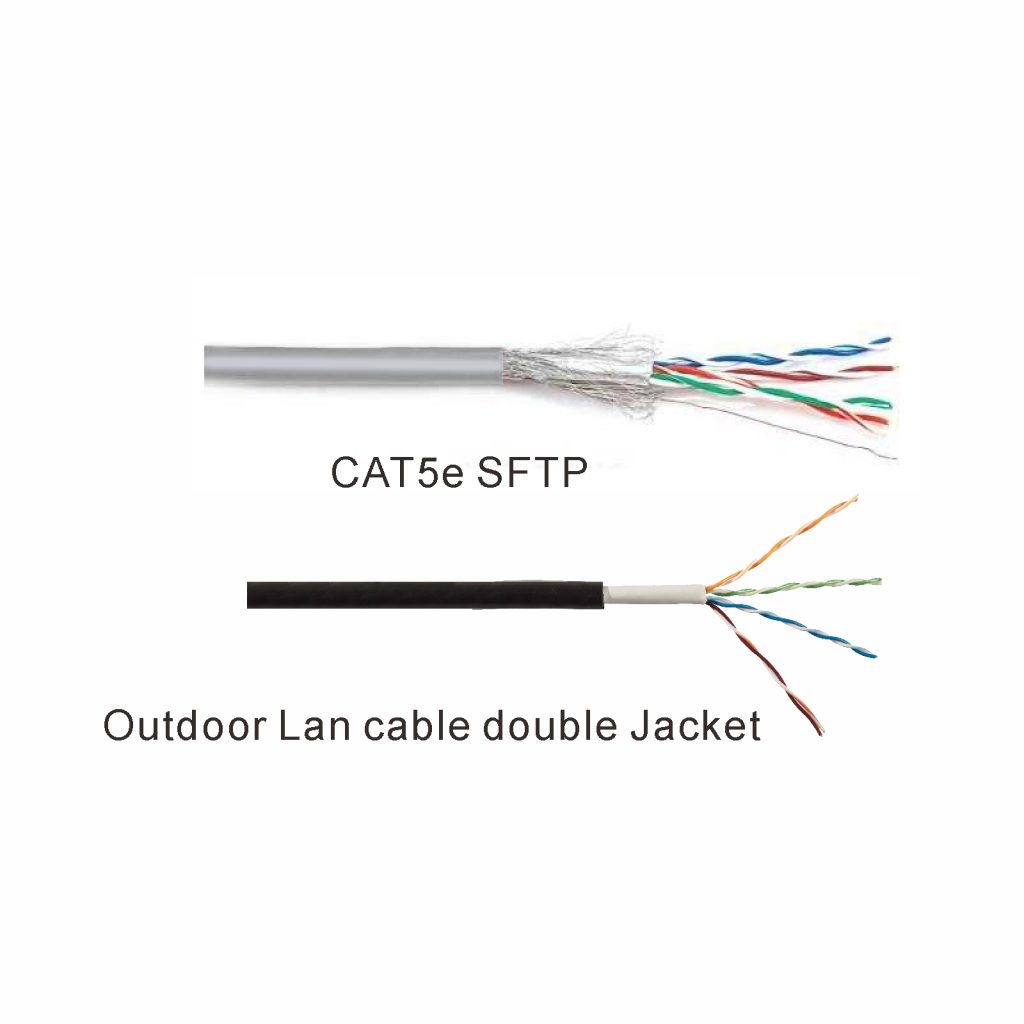

SFTP 0.5 HDPE∅0.93 AI Foil+ 80*0.12AI Braiding PVC ∅6.4
UTP outdoor ∅0.50 HDPE∅0.93 Yes PE ∅7
Frequency Impedance  Attenuation(dB/110M) Next Worst(Pair/dB) ACR
1 100+15 2.1 80 77.9
4 3.9 80 76.1
10 6 80 74
16 7.6 80 72.4
20 8.5 80 71.5
31.25 10.6 80 69.9
62.5 15 75 60
100 100+15 19 71 52
155 24 68 44
200 27 66 39
300 33 64 31
600 50 60 10
