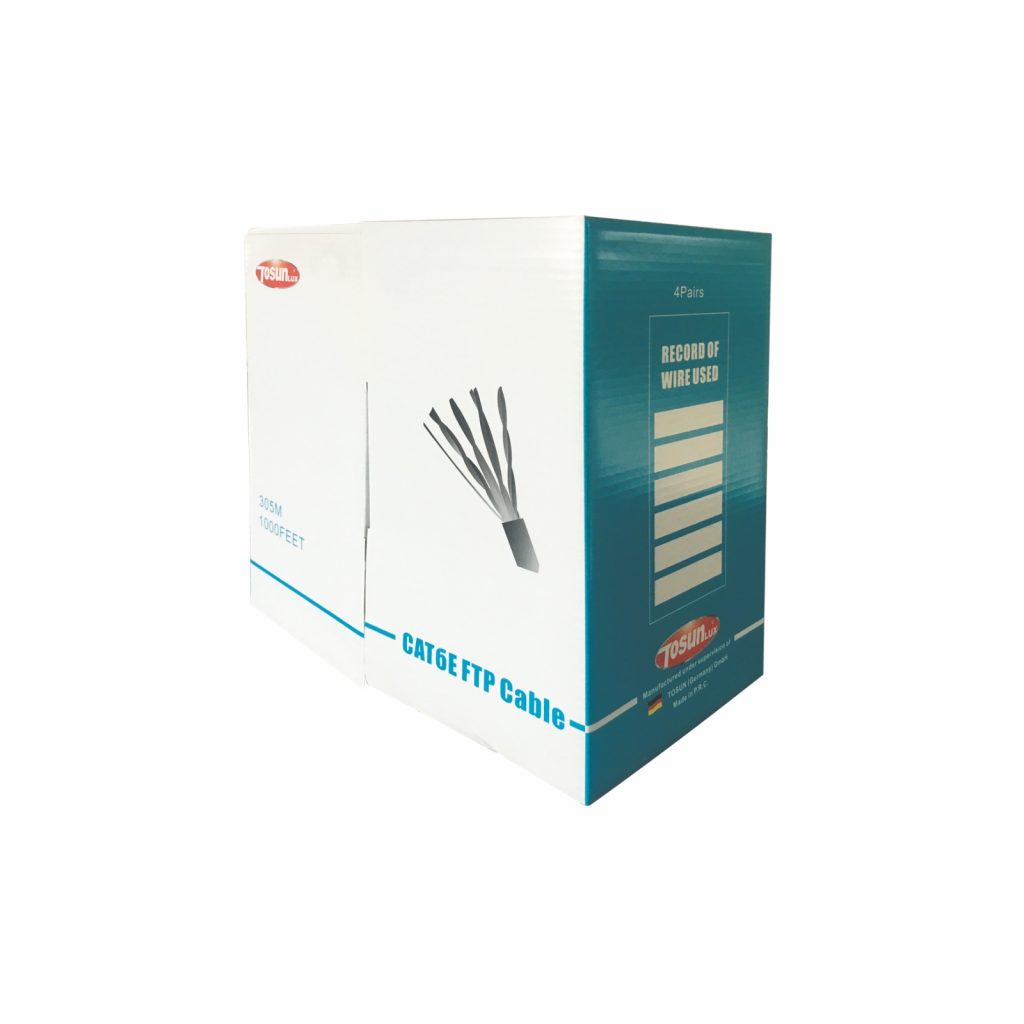

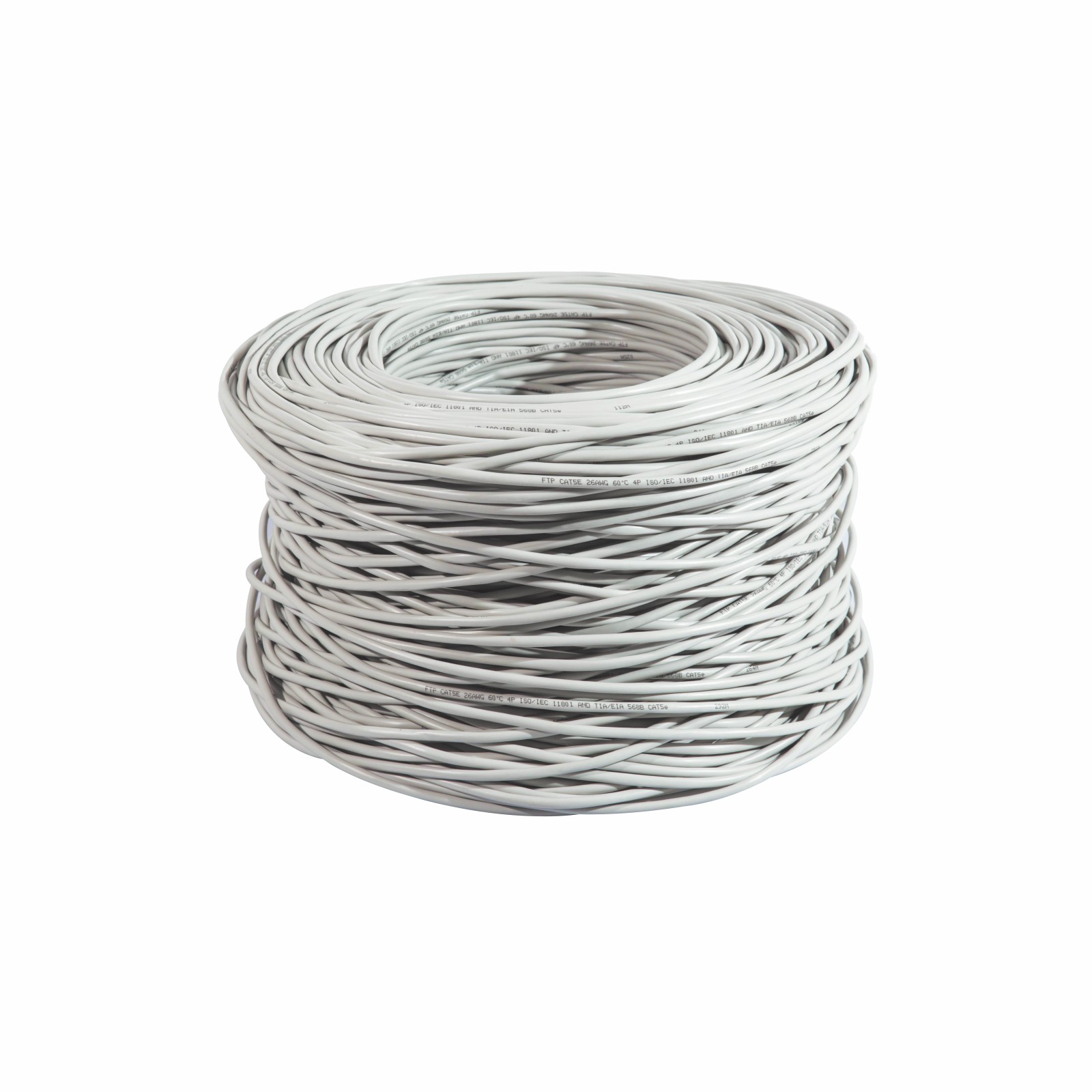

CAT6 LAN Cable

Basic Information

Product Description

Description

Bare copper or CCA conductor

HDPE insulation

Rip cord(optional)

Lead free PVC,PE or LSOH jaket

Rated temperature:60℃,75℃

Easy-pull box or Plate Packing

Reference standard:ISO/IEC 11801. ANS/TIA/EIA-56B/568A

Application

Used as work station out the 100Base-TX ; 100Base-T4

100VG-Any;1000 Base-T(Gigabi Etherent);155Mbps ATM;622Mbps ATM;

Construction

Type Conductor O.D.  Insulation Rip Cord Jacket O.D.
UTP ∅0.57 HDPE∅0.98 Yes PVC ∅6.3
FTP ∅0.57 HDPE∅0.98 AI Foil+ Drain Wire PVC ∅6.8
SFTP ∅0.57 HDPE∅0.98 AI Foil+ CCA Braiding PVC ∅6.9
UTP outdoor ∅0.57 HDPE∅0.98 Yes PE ∅7.0
