DC Miniature Circuit Breaker

Basic Information
  1. Model TSB5-63DC
  2. Number of poles 1P,2P,3P,4P
  3. Rated current (A) 6,10,16,20,25,32,40, 50,63, 80

Product Description

Application

TSB5-63DC circuit breaker is designed to provide over current protection within appliances or electrical equipment, the branch circuit protection is already provided or not required. The device is designed for direct current (DC) control circuit applications.

Spcification

Number of poles 1P,2P,3P,4P
Rated current (A) 6,10,16,20,25,32,40,50,63,80
Breaking capacity 6000A
Rated operating voltage 1P/250V 2P/500V 3P/750V 4P/1000V
Rated insulation voltage 800V
Electric life ≥ 2500 operations
Mechanical life ≥ 20000 operations
Trip type Thermal-magnetic
Ambient temperature -20℃~+70℃
Installation Din rail

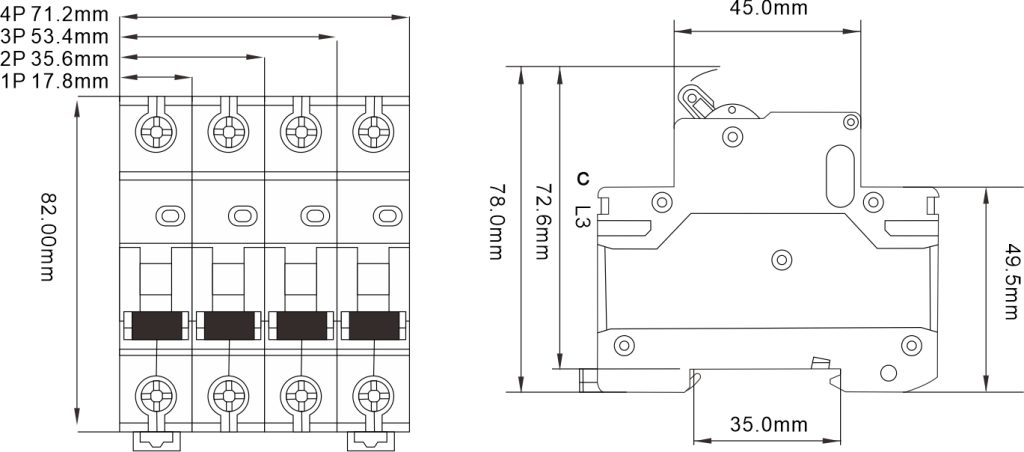

Dimensions
