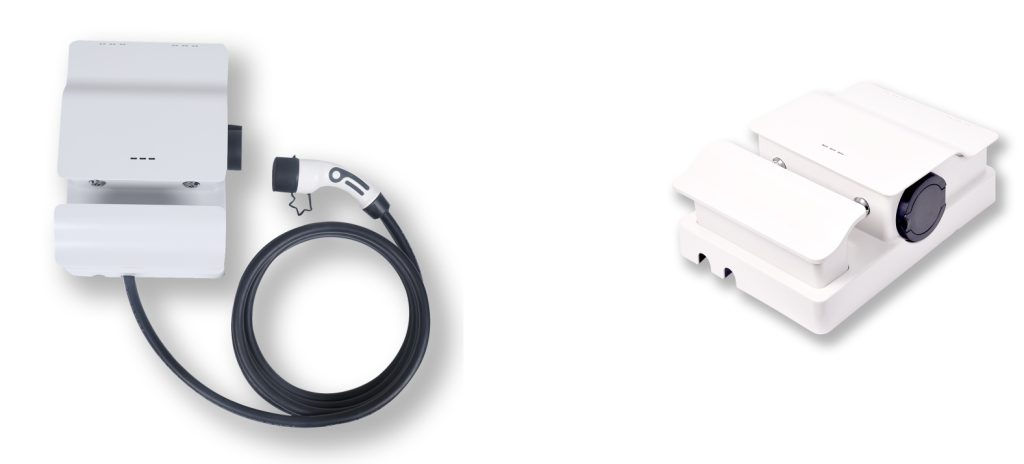

Electrical Car Charger(E3T)

Basic Information
  1. Type E3T1132/E3T2132,E3T2332,E3T2232,E3T2432
  2. Rated current 10-32A
  3. IP grade IP55

Product Description

Specification

Type  E3T1132/E3T2132 E3T2332 E3T2232 E3T2432
AC power 1P+N+PE 3P+N+PE 1P+N+PE 3P+N+PE
Power supply voltage AC230~±10% AC400~±10% AC230~±10% AC400~±10%
Rated current 10-32A
Maximum power 7.4kW 22kW 7.4kW 22kW
Frequency 50-60Hz
Cable length 5m Socket
Sockets/plugs Type1/Type2 Type2
Weight 5.5kg 6.8kg 3.45kg 3.7kg
IP grade IP55
Working temperature -40℃~+45℃
Cooling way natural cooling
Shell color white/black
Special function RCMU/DLB/RFID optional
Installation mode wall(default)/column

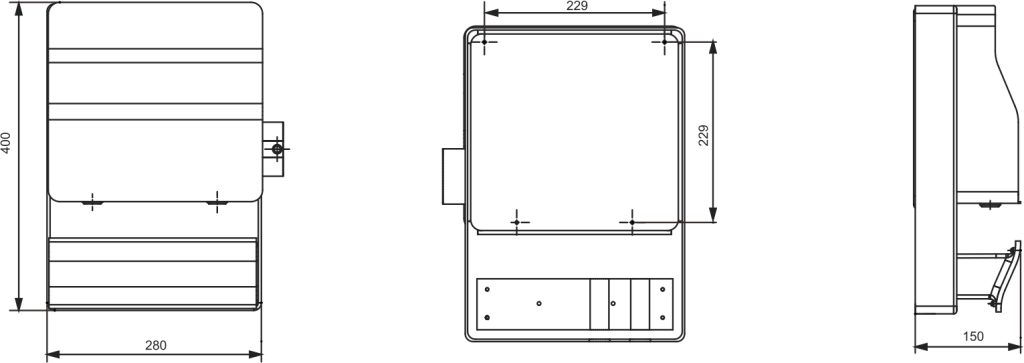

Dimensions
