EP Changeover Switch

Basic Information
  1. Model EP series
  2. Rated Iinsulation Voltage Ui(V) 660
  3. Mechanical Life 60x10^4
  4. Electrical life AC-15 20x10^4   DC-13 6 x10^4

Product Description

Specification

Type EP-20A EP-25A EP-32A EP-75A EP-125A
Rated Insulation Voltage UI(V) 880
Conventional Heating Current Ith(A)Ac10<40° 20 25 32 75 125
Rated Working Voltage Ue(V) 120   240    440 120 240 440 120 240 440  120      440       440
Rated Working Current le(A) AC-21A AC-22A                     20                 25                32              75        125
AC-23A                     15                 22                30              72         90
AC-2                     15                22                30              72        90
AC-3                     11                15                22              32        36
AC-4                     3.5                6.5                11              23        30
AC-15             5      4            8    5           14  3
AC-13    5      1     9    1.5   25 11   60
Rated Control Power(KW) AC-23A                    7.5                 11                15             30        45
AC-2                    7.5                 11                15             30        45
AC-3                    5.5                 7.5                11             24        45
AC-4                    1.5                  3                5.5           11.5       18.5
Mechanical Life 60×10^4
Electrical Life AC-15 20x 10^4         DC-13 6x 10^4

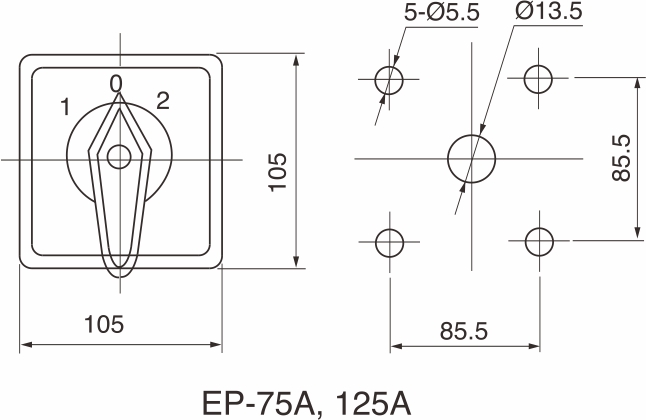

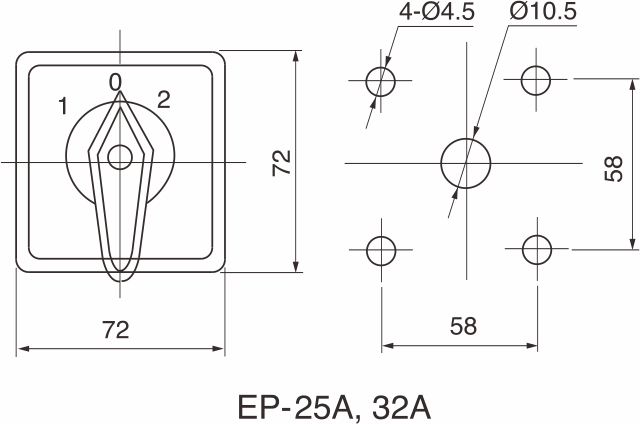

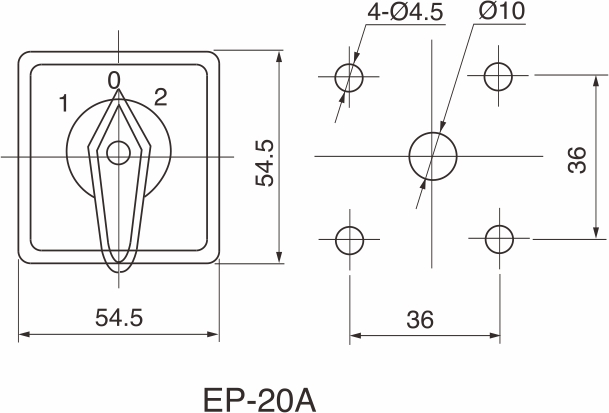

Dimension
