General Relay LY3

Basic Information
  1. Model LY3
  2. Mounting methods Printed-circuit board,Outlet

Product Description

Specification

Model  LY3
Terminal layout 3Z
Contact capacity AC 10A250V
DC 10A28V
Contactresistance(mΩ) ≤50mΩ
Insulation resistance(MΩ) ≥100MΩ
Dielectric strength BOC 1000VAC
BCC 1500VAC
Coil nominal voltage AC 6 to 240V
DC 6 to 220V
Coil nominal power AC ≤2.0VA
DC ≤1.4W
Electrical life(OPS) 100000
Mechanical life(OPS) 10000000
Operating temperature(℃)  -40~+70
Weight(g) ≤50
Mounting methods Printed-circuit board,Outlet

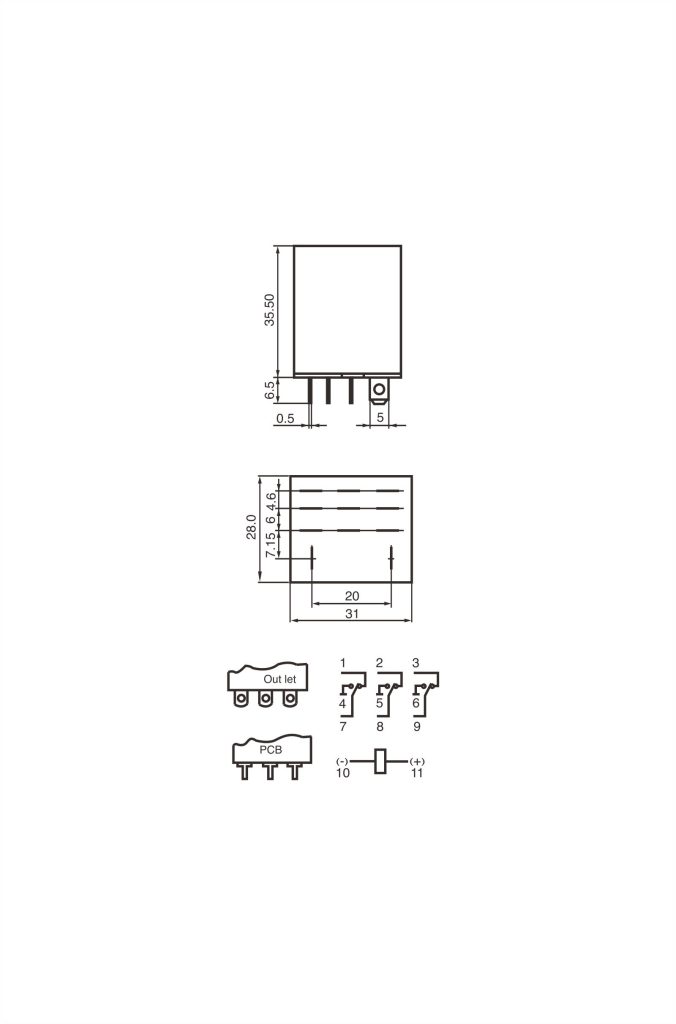

Dimension
