General Relay LY4

Basic Information
  1. Model LY4
  2. Mounting methods Printed-circuit board,Outlet
Get a Quote

Product Description

Specification
Model  LY4
Terminal layout 4Z
Contact capacity AC 10A250V
DC 10A28V
Contactresistance(mΩ) ≤50mΩ
Insulation resistance(MΩ) ≥100MΩ
Dielectric strength BOC 1000VAC
BCC 1500VAC
Coil nominal voltage AC 6 to 240V
DC 6 to 110V
Coil nominal power AC ≤2.5VA
DC ≤1.6W
Electrical life(OPS) 100000
Mechanical life(OPS) 10000000
Operating temperature(℃)  -40~+70
Weight(g) ≤70
Mounting methods Printed-circuit board,Flange,Outlet

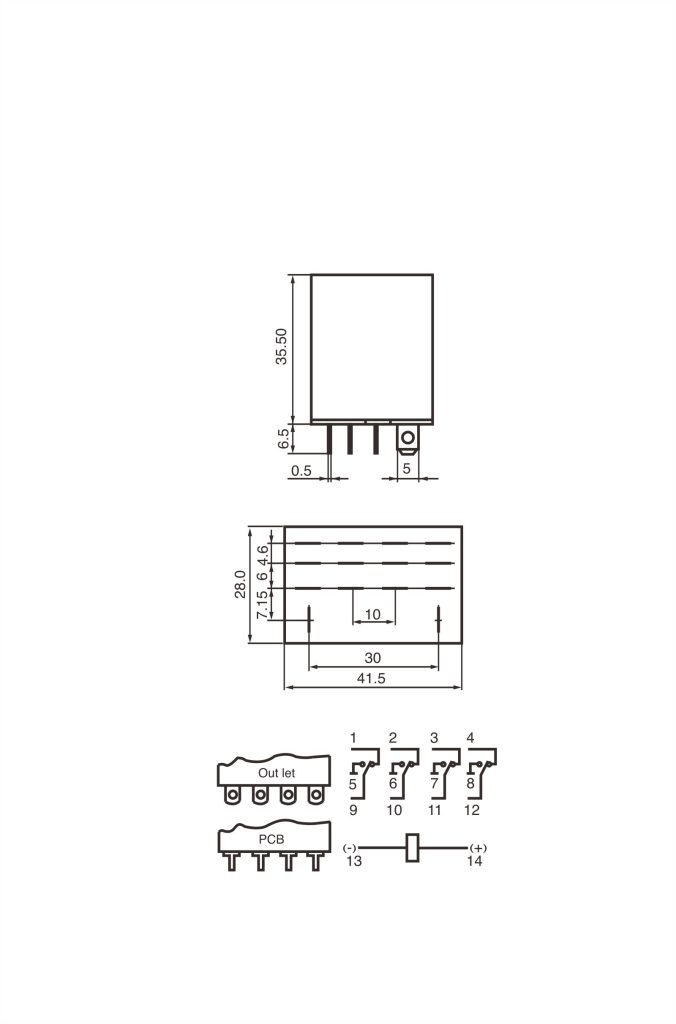

Dimension
