Hygrostat

Basic Information
  1. Model MFR-012
  2. Allow wind speed 15m/sec
  3. Installation 35mm Din rail

Product Description

Application

The electromechanical hygrostat is designed to control enclosure heaters,the dew point is raised when a critical relative humidity exceeds 65%.In this way condensation and corrosion in enclosures with electronic components is effectively prevented.

Specification

Switching error 4% RH (±3% tolerance)
Relative humidity range 35%-95%
Allow wind speed 15m/sec
Contact type Changeover contact
Contact resistance <10m ohm
Service life >50,000 cycles
Min .switching capacity 20VAC/DC 100mA
Max. switching capacity 250VAC, 5A
Connection 3-pole terminal for 2 5mm², clamping torque 0.5Nm max rigid wire 2 5mm², stranded wire (with wire and ferrule) 1. 5mm²
Installation 35mm Din rail
Fitting position UL94V-0. Plastic light grey
Operating/Storage temperature 0~+60℃(+32-+140°F)
-20~+80℃(-4-+176°F)
Protection Class IP20

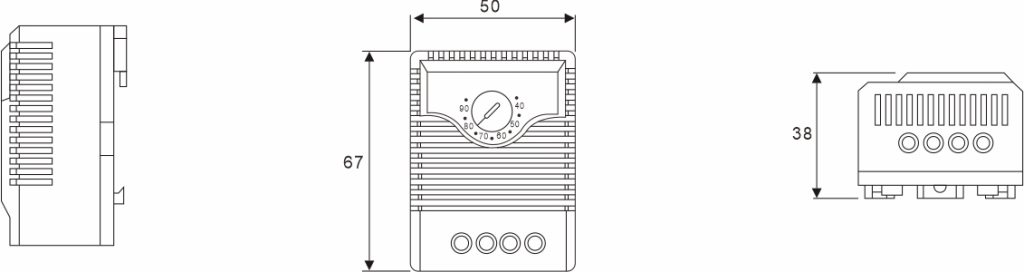

Dimension

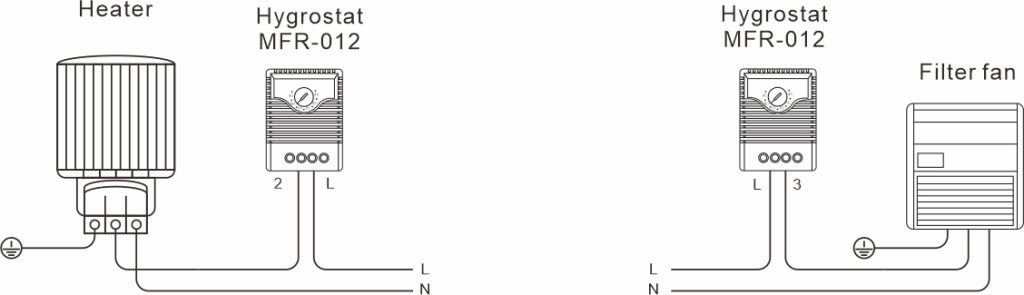

Examples of Connection
