Inverter

Basic Information
  1. Model Pure sine wave, Modified wave

Product Description

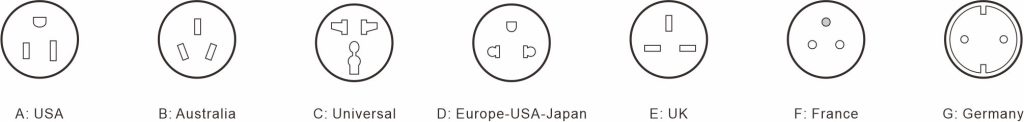

Available Socket

Application

Pure sine wave output or modified wave output

Low work noise, high efficiency.

Small, light and artistic, benefited from adopting the SMD technology.

Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology.

Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the work noise.

With complete protection: overload protection, internal over-temperature protection, output short-circuit protection, input under-voltage protection, input over-voltage protection, etc, improving the reliability of the products greatly.

Specification

Input Rated DC voltage 12V or 24V or 48V
Voltage range 10-16VDC or 20-33VDC or 40-63VDC
Efficiency >90%
DC connection Cables with Clips or Car Adaptor
Output AC voltage 100/110/120 VAC or 220/230/240 VAC
Waveform Pure sine wave/ Modified wave
Frequency 50Hz or 60Hz
AC regulation 3%
Protection Low voltage alarm 10.5DC±0.5V or 21DC±1Vor42VDC±1Vor100vDC±1V
Low voltage shut down 10DC±0.5V or 20DC±1Vor 40VDC±1V or 96VDC±5V

Pure sine wave

Model TZ-300S TZ-500S TZ-600S TZ-1000S TZ-1500S TZ-2000S TZ-3000S TZ-4000S TZ-5000S
input Idling current < 0.7A < 0.5A < 0.8A < 0.8A < 1.1A < 2.5A
Output Continuous power 300VA 500VA 600VA 1000VA 1500VA 2000VA 3000VA 4000VA 5000VA
Surge power 600VA 1000VA 1200VA 2000VA 3000VA 4000VA 6000vVA 8000VA 10000VA
Dimensions 205x112x52 270x173x75 315x173x75 395x173x75 400x215x91 450X215X91 425x217x153 520x217x153

Modified wave

Model TZ-300M TZ-500M TZ-600M TZ-1000M TZ-1500M TZ-2000M TZ-3000M TZ-4000M
Input Idling current < 0.7A < 0.5A < 0.8A < 0.8A < 1.1A < 2.5A
Output Continuous power 300VA 500VA 600VA 1000VA 1500VA 2000VA 3000VA 4000VA
Surge power 600VA 1000VA 1200VA 2000VA 3000VA 4000VA 6000VA 8000VA
Dimensions 160x112x52 185x112x52 230x173x75 280x173x75 310x215x91 380x215x91 425x217x153
