products
Modular Changeover Switch
Basic Information
- Model TSQ7-40 TSQ7-125
- Number of poles 1P,2P,3P,4P
- Rated working voltage Ue 240V/415V
- Rated current (A) 16,25,32,40 63,80,100,125
Product Description
Application
The changeover switch can switch on, load and break the circuit under the normal conditions, using as switch disconnectors.
Specification
| Model | TSQ7-40 |
| Number of poles | 1P,2P,3P,4P |
| Rated working voltage Ue | 240V/415V |
| Frequency | 50/60Hz |
| Rated current (A) | 16,25,32,40 |
| Standard | IEC60947-3 |
| Icw | 1000A/1s |
| Icm | 3000A |
| Protection level | IP20 |
| Contact form | 1-0-2 |
| Ambient Temperature | -5°C…40°C |
| Mounting | DIN rail EN60715 (35mm) |

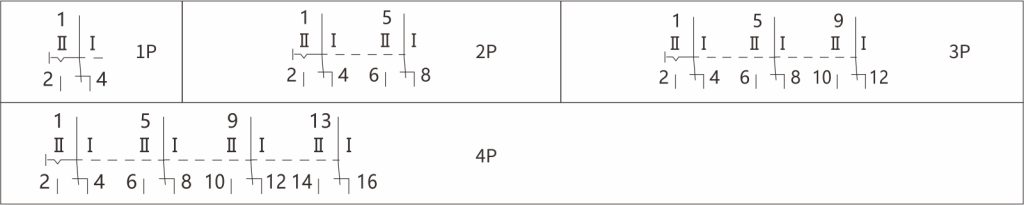

Circuit Diagram

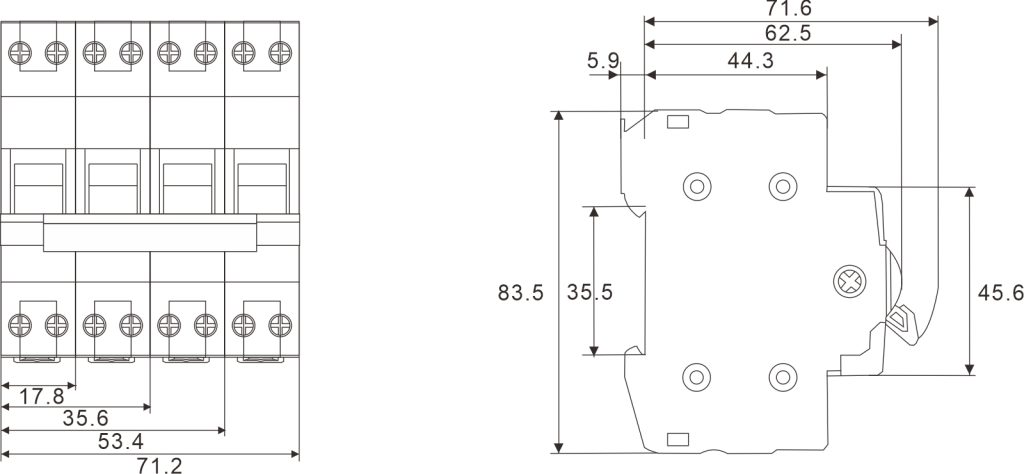

Dimensions
Specification
| Model | TSQ7-125 |
| Number of poles | 1P,2P,3P,4P |
| Rated working voltage Ue | 240V/415V |
| Frequency | 50/60Hz |
| Rated current (A) | 63,80,100,125 |
| Standard | IEC60947-3 |
| Icw | 3000A/1s |
| Icm | 5000A |
| Protection level | IP20 |
| Contact form | 1-0-2(S-0-M) |
| Ambient Temperature | -5°C…40°C |
| Mounting | DIN rail EN60715 (35mm) |

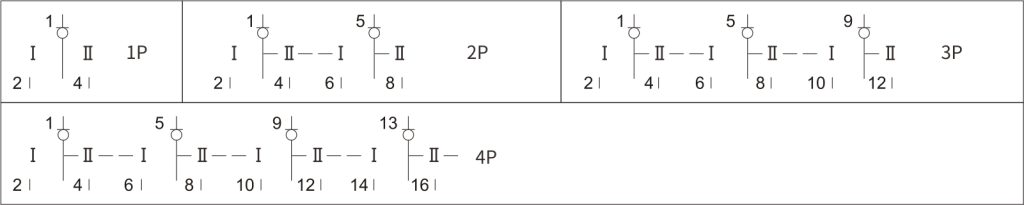

Circuit Diagram

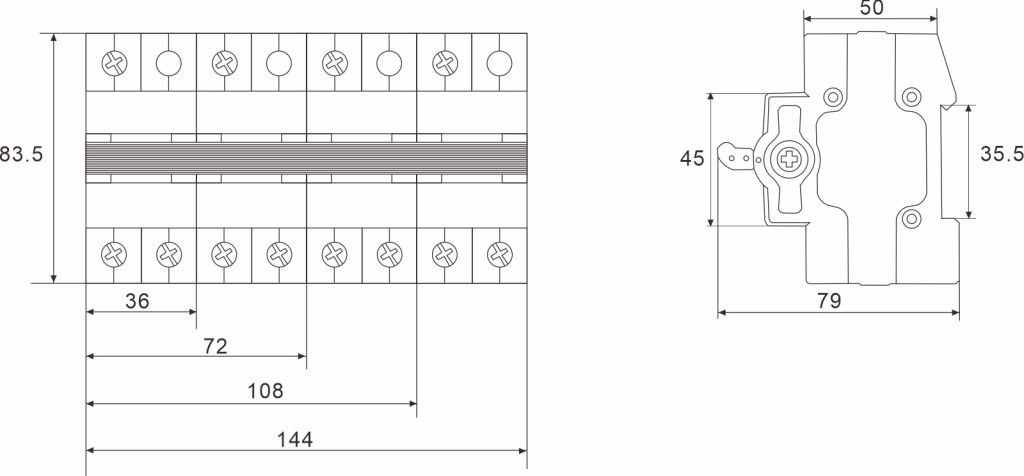

Dimensions
