Modular Digital Voltage & Current Protector

Basic Information
  1. Rated Working Current 40A, 63A

Product Description

Application

TDP2 Voltage Protector, a new generation of home appliance protectors, is suitable for houses, hotels, buildings, school dormitories, etc, to protect the electrical safety of appliances and other loads, to prevent damage to the load caused by too high or too low mains power.

Specification

Model TDP2-1 TDP2-3
Rated Supply Voltage AC 220V AC 380V
Operation Voltage Range AC 80V~400V(single phase) AC 80~400V(three phase) AC140~700V(three phase)
Electric Current(> A)setting Range 1 ~40/63A 1 ~40A/63A/80A/100A 1 ~40A/63A/80A/100A
Overvoltage(>U)setting Range 230~300V 390~500v
Undervoltage(<U)setting Range 210~140V 370~260V
Rated Current 40/63A 40A/63A/80A/100A 40A/63A/80A/100A
>U and <U Trip Delay 0.1~30s
Reset/start Delay 1 ~600s 1 ~500s
Voltage Measurement Accuracy 2% (Not exceeding 2% of the overall range)
Rated Insulation Voltage 400V 700V
Output Contact 1NO 3NO
Protection Degree IP 20
Pollution Degree 3
Altitude ≤2000m
Operatintg Temperature – 50°C~55°C
Humidity ≤50% at 40°C(without condensation)
Storage Temperature -30°C~70°C

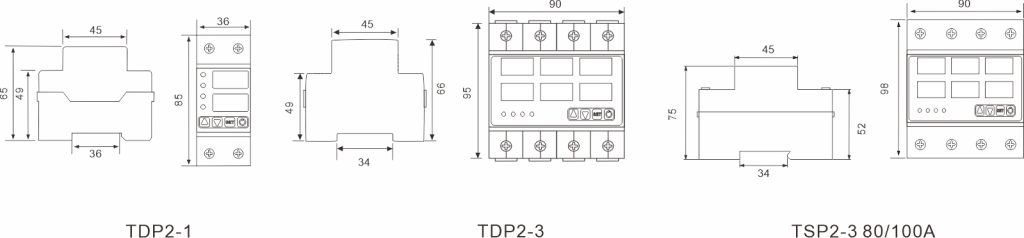

Dimensions
