DM100SC/DM100TC Modular Energy Meter

Basic Information

Product Description

Application

DM100SC DM100TC modular energy meter is designed with microelectronics and digital processing to ensure the reliable and accurate measuring. The product adopts with preciseness SMT technology to make good electromagnetic interference resistance and stable performance. The product measures positive active energy in electric energy measurement and clearly displayed by LCD backlight screen. The product complies with IEC62053-21.

Specification

Model  DM100SC  DM100TC
Voltage Rated 110/120/220/230/240V 50/60Hz 3×57.7/100V, 3×220/380V                    3x230V/400V, 3×240/415V
Range 0.9Un~1.1Un
Limit 0.8Un~1.2Un
Current Range 1.5(6), 5(30),10(50), 15(90),20(100),5(40), 5(100)A 3×1.5(6), 3×5(30), 3×10(50), 3×15(90), 3×20(100), 3×5(40), 3×5(100)A
Active constant Active 800 imp/kWh                                            1600 imp/kWh 400 imp/kWh, 800 imp/kWh,                               1600 imp/kWh
Display Type Register 6+1/LCD6+1
Power consumption Voltage circuit ≤0.8W.10VA
Current circuit ≤4VA
Communication “ Interface Optical / Infrared / RS8485 (optional)
Protocol MODBUS, DLT/645, IEC1107
Temperature Working temperature -45°C~+55°C
Storage temperature -40°C~+70°C

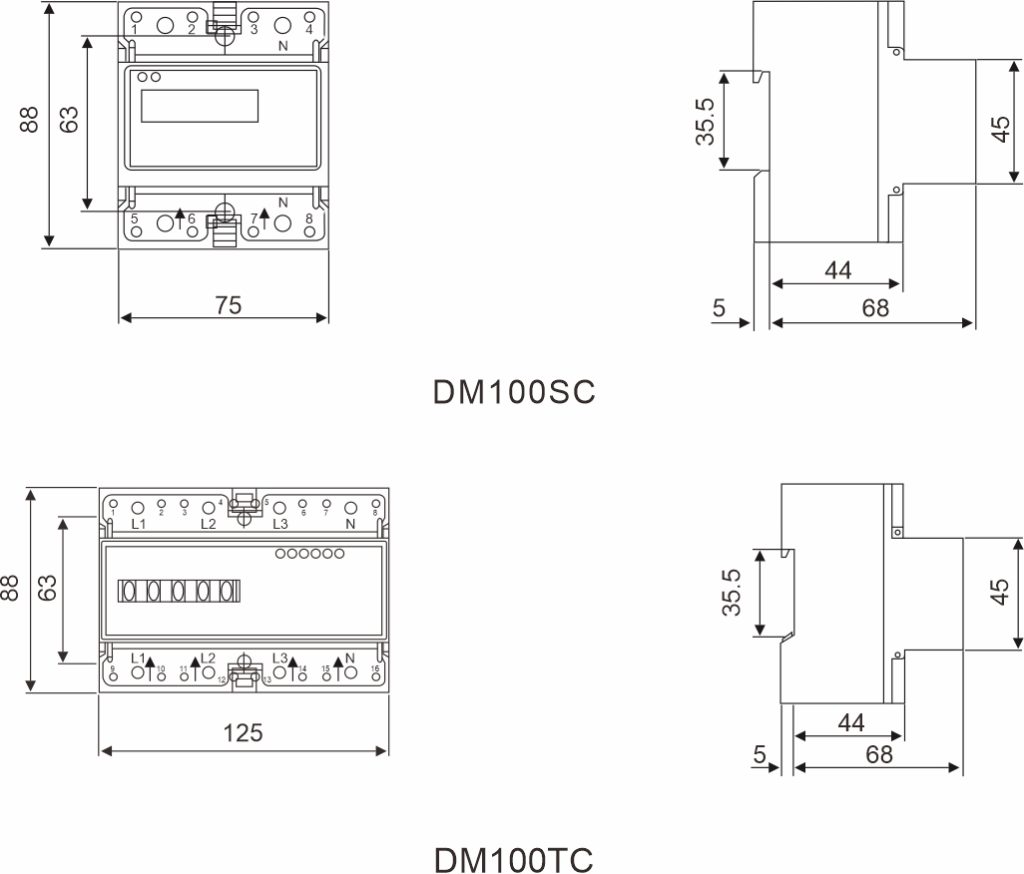

Dimensions
