Pulse Output Time Relay TRT8

Basic Information
  1. Switching voltage 250VAC/24VDC
  2. Reset time max.200ms

Product Description

Applications

It is used to delay and generate a pulse, which is used to delay the connection of a load for a period of time.

Feature

Separate delay time and pulse width setting can set different delay time.
Time scale 0.1 s - 100 days.
The delay time can be reset by shorting S-A1.
With AC/DC 12V-240V ultra wide operating voltage specifications are optional.
Relay status is indicated by LED.
1-MODULE,DIN rail mounting.

Technical Parameters



Dimension

Model TRT8-P1 TRT8-P2
Function Puise output time relay
Supply terminals A1-A2
Voltage range AC/DC 12-240V(50-60Hz)
Burden AC 0.09-3VA/DC 0.05-1.7W
Voitage range AC230V(50-60Hz)
Power input AC max.6VA/1.3W AC max.6VA/1.9W
Supply voltage tolerance -15%;+10%
Supply indication green LED
Time ranges 0.1s-100days
Time setting potentionmeter
Time deviation 10%-mechanical setting
Repeat accuracy 0.2%-set value stability
Temperature coefficient  0.05%/℃,at=20°C(0.05%°F,at=68°F
Output  1xSPDT 2xSPDT
Current rating 1x16A(AC1) 2x16A(AC1)
Switching voitage 250VAC/24VDC
Min.breaking capacity DC 500mW
Output indication red LED
Mechanical life 1×10000000
Electrical life(AC1) 1×100000
Reset time max.200ms
Operating temperature  -20℃ to +55℃(-4℉ to 131℉)
Storage temperature  -35°℃ to +75°C(-22℉ to 158℉)

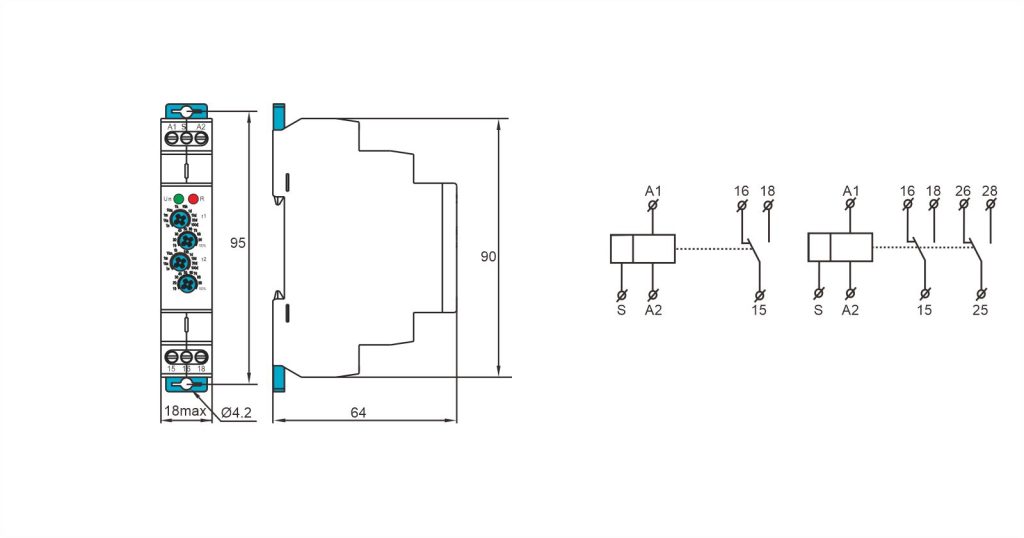

Dimension
