Single-Function Time Relay TRT8

Basic Information

Switching voltage 250VAC/24VDC

Reset time max.200ms

Feature

Single-function relay with possibility of time setting by a potentiometer.
Choice of 2 functions: A: Delay ON
OB:Delay FF
Time scale 0.1s-10 days divided into 10 ranges.
Relay status is indicated by LED.
1-MODULE,DIN rail mounting.


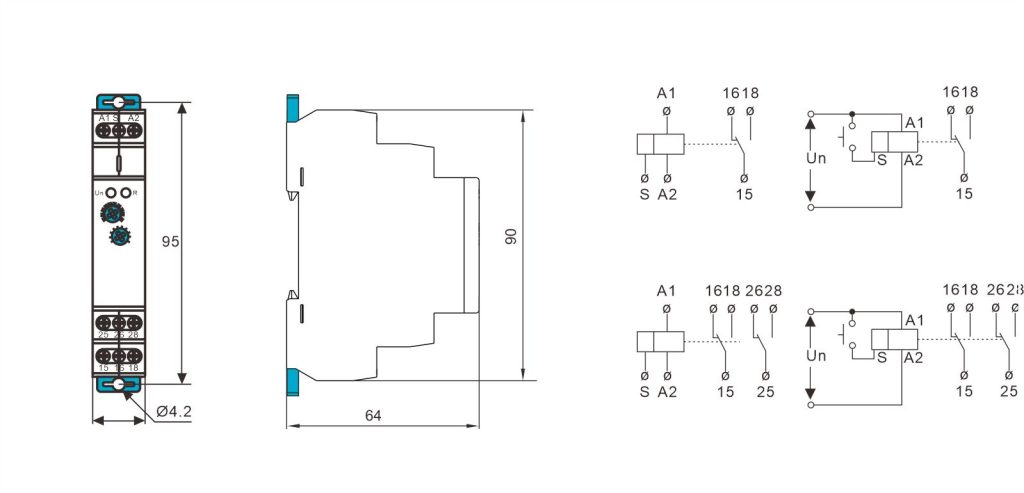

Technical Parameters

Model		TRT8-A1/B1	TRT8-A2/B2
Function		A:delay ON;B:delay OFF
Supply terminals		A1-A2
Voltage range	W240	AC/DC 12-240V(50-60Hz)
Burden		AC 0.09-3VA/DC 0.05-1.7W
Voltage range	A230	AC 230V(50-60Hz)
Power input		AC max.6VA/1.3W	AC max.6VA/1.9W
Supply voltage tolerance		-15%;+10%
Supply indication		Green LED
Time ranges		0.1s-10days,ON,OFF
Time setting		Potentionmeter
Time deviation		10%-mechanical setting
Repeat accuracy		0.2%-set value stability
Temperature coefficient		0.05%/°C,at=20℃(0.05%°F,at=68°F)
Output		1xSPDT	2xSPDT
Current rating		1x16A(AC1)	2x16A(AC1)
Switching voltage		250VAC/24VDC
Min.breaking capacity DC		500mW
Output indication		Red LED
Mechanical life		1×10000000
Electrical life(AC1)		1×100000
Reset time		max.200ms
Operating temperature		-20℃ to +55℃(-4F to 131°F)
Storage temperature		-35°C to +75℃(-22°℉ to 158°℉)
Standards		EN 61812-1,IEC6947-5-1
