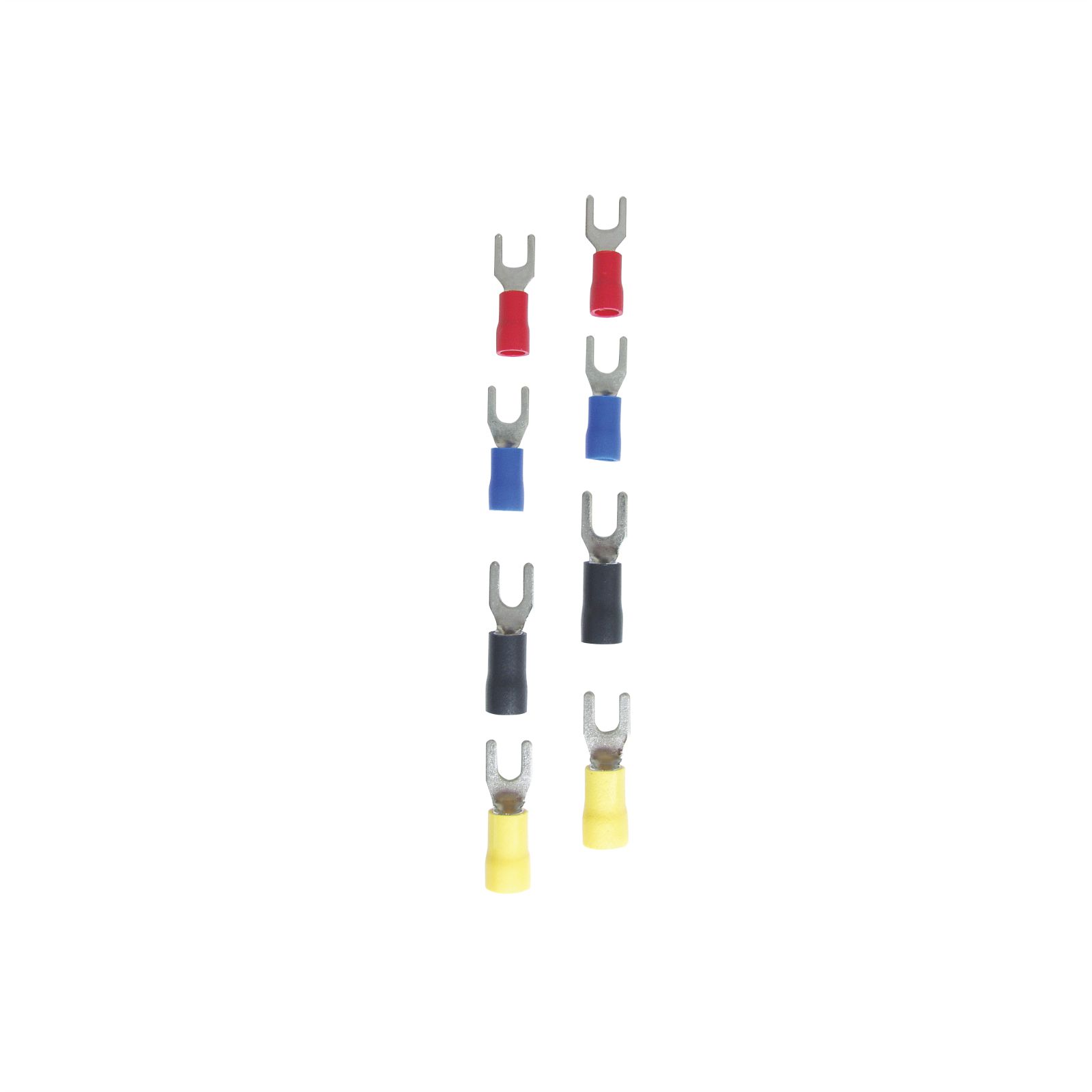

Spade Shaped Insulated Terminal

Basic Information

Product Description

Lead section: 0.5~1.5mm2(A.W.G22~16) Max current: =9A

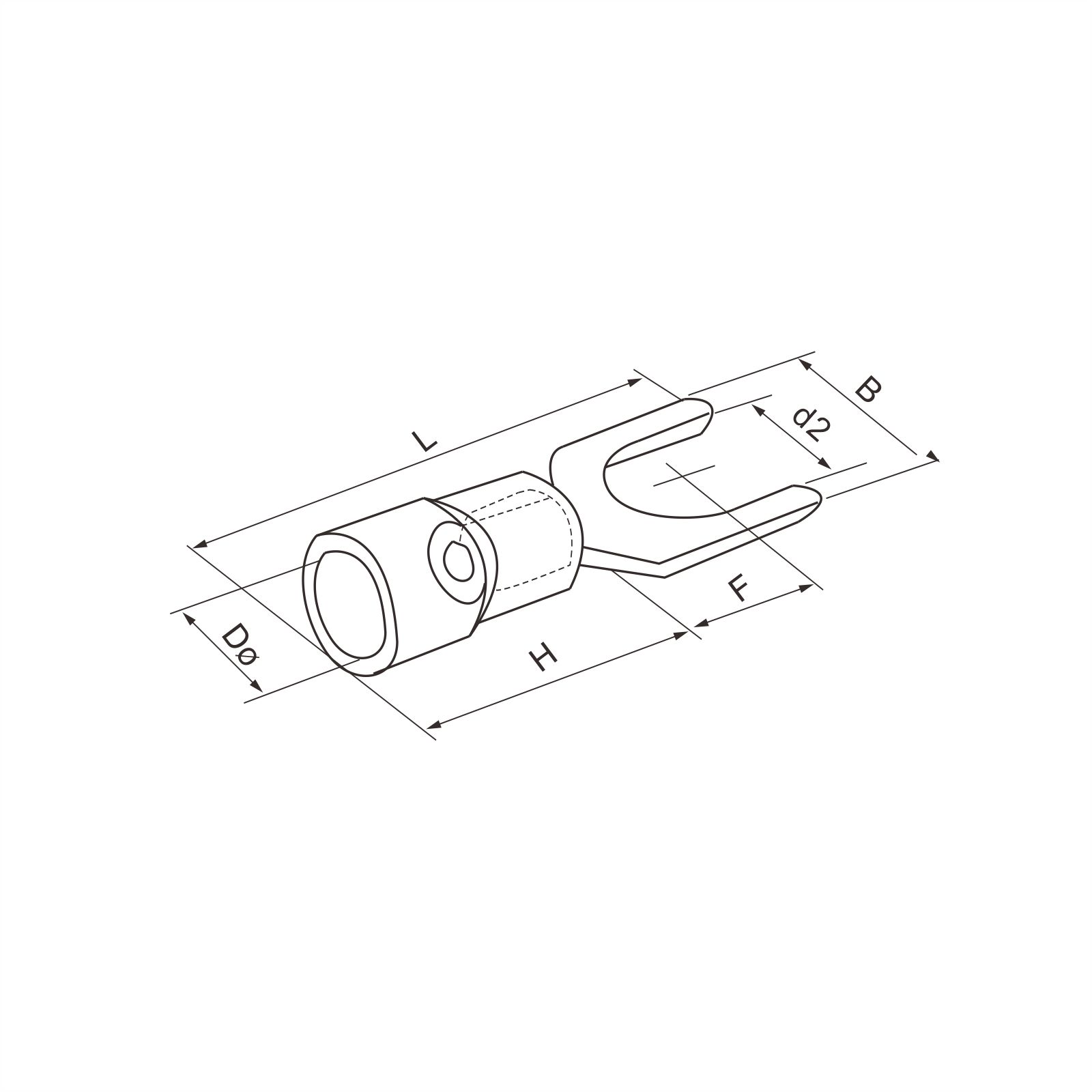

Model Number of ANSI bolts Diameter of bolt mouth d2 B L F H Color
SV1.25-3 #4 3.2 5.7 21.2 6.5 10 4.3 Red
SV1.25-3.5S #6 3.7 5.7 21.2 6.5
SV1.25-3.5L #6 3.7 6.4 21.2 6.5
SV1.25-4S #8 4.3 6.4 21.2 6.5
SV1.25-4M #8 4.3 7.2 21.2 6.5
SV1.25-4L #8 4.3 8.1 21.2 6.5
SV1.25-5S #10 5.3 8.1 21.2 6.5
SV1.25-5L #10 5.3 9.5 21.2 6.5
SV1.25-6S  1/4 6.5 9.5 21.2 6.5
SV1.25-6L  1/4 6.5 12 21 1/5 11

Lead section: 1.5~2.5mm2(A.W.G16~14) Max current: =27A

Model Number of Diameter of B L F H Color
ANSI bolts bolt mouth d2
SV2-3 #4 3.2 5.7 21.2 6.5 10.0 4.9 Blue
SV2-3.5S #6 3.7 5.7 21.2 6.5
SV2-3.5L #6 3.7 6.4 21.2 6.5
SV2-4S #8 4.3 6.4 21.2 6.5
SV2-4M #8 4.3 7.2 21.2 6.5
SV2-4L #8 4.3 8.1 21.2 6.5
SV2-5S #10 5.3 8.1 21.2 6.5
SV2-5L #10 5.3 9.5 21.2 6.5
SV2-6S 1/4 6.5 9.5 21.2 6.5
SV2-6L 1/4 6.5 12 12 11

Lead section: 2.5~4mm2(A.W.G14~12) Max current: =37A

Model Number of ANSI bolts Diameter of  bolt mouth d2 B L F H Color
SV3.5-4 #8 4.3 8 24.8 7 12.5 6.2 Black
SV3.5-5 #10 5.3 8 24.8 7
SV3.5-6 1/4 6.5 12 28 12.1

Lead section: 4~6mm2(A.W.G12~10) Max current: =48A

Model Number of  ANSI bolts Diameter of bolt mouth d2 B L F H Color
SV5.5-3.5 #6 3.7 8.3 25.2 7.5 12.5 6.7 Yellow
SV5.5-4S #8 4.3 8.3 25.2 7.5
SV5.5-4L #8 4.3 9 23.9 7.5
SV5.5-5 #10 5.3 9 23.9 7.5
SV5.5-6S 1/4 6.5 9 23.9 7.5
SV5.5-6L 1/4 6.5 12 31.2 12
SV5.5-8 5/16 8.4 14 30 11.5
