TSB1-63 Miniature Circuit Breaker

Basic Information
  1. Rated Current (A) 1-63A

Product Description

Application

TSB1-63 miniature circuit breaker is used for overload and short-circuit protection in lighting distribution system or motor distribution system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity and can trip quickly. Also it adopts high fire-resistant and shockproof plastics. The products comply with IEC 60898 and have been certified by “CB”, “TUV” and “CE”.

Specification

Number of Poles 1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated Current(A) 1, 2, 3, 4, 5, 6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63
Breaking Capacity 6000A
Rated Voltage 1P: 240/415V
2P, 3P, 4P: 415V
Rated Frequency 50/60Hz
Endurance(V) ≥4000
Circumstance Temperature -5ºC~+40ºC
Electrical Life (times) ≥ 6000
Mechanical Life (times) (O-C) ≥ 20000
Protection Degree IP20

Upper Wiring

Lower Wiring

1-25mm²

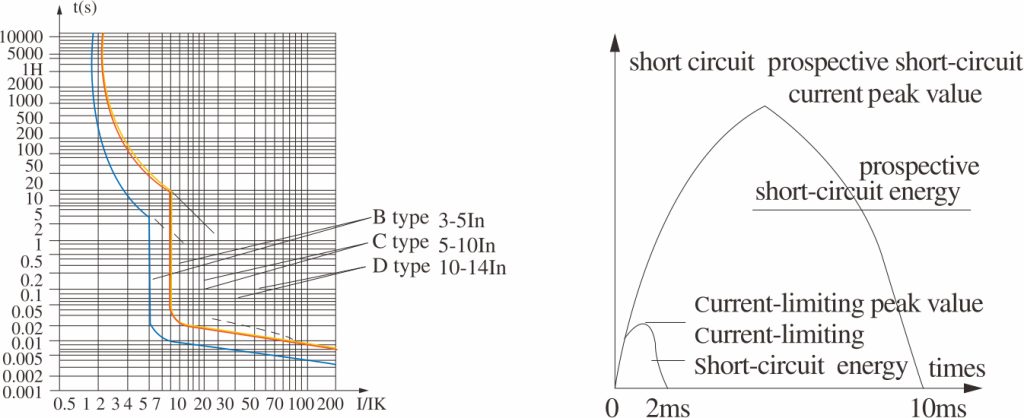

Characteristic Curve

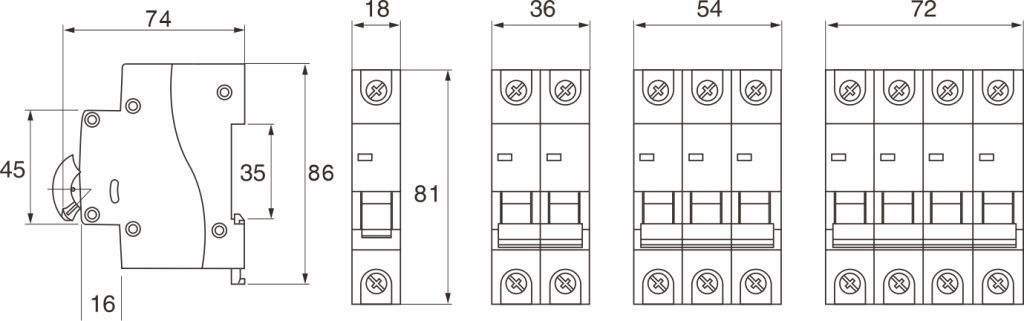

Dimensions
