TSB3-125 Miniature Circuit Breaker

Basic Information
  1. Breaking Capacitor 6000A

Product Description

Application

TSB3-125 series miniature circuit breaker is suitable for AC 50/60Hz rated voltage 400V and below, rated current to 125A circuit for overload, short circuit protection, can also be used as a line infrequent operation conversion. The circuit breaker is suitable for commercial office buildings and residential houses. The produts comply with IEC60898-1.

Specification

Number of Poles 1P, 2P, 3P, 4P
Rated Current (A) 80, 100, 125
Breaking Capacity 6000
Rated Voltage 230/400V~  240/415V~
Rated Frequency 50/60Hz
Endurance ≥20000
Circumstance Temperature -5°C~+40°C
Electrical Life (times)  ≥ 6000
Mechanical Life (times)  (O-C) ≥ 20000
Protection Degree IP20

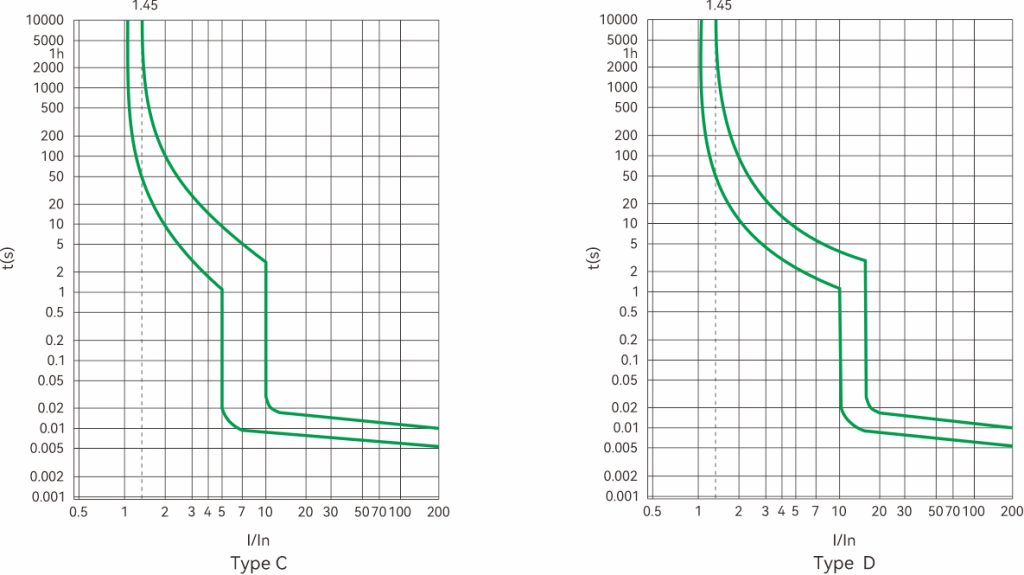

Characteristic Curve

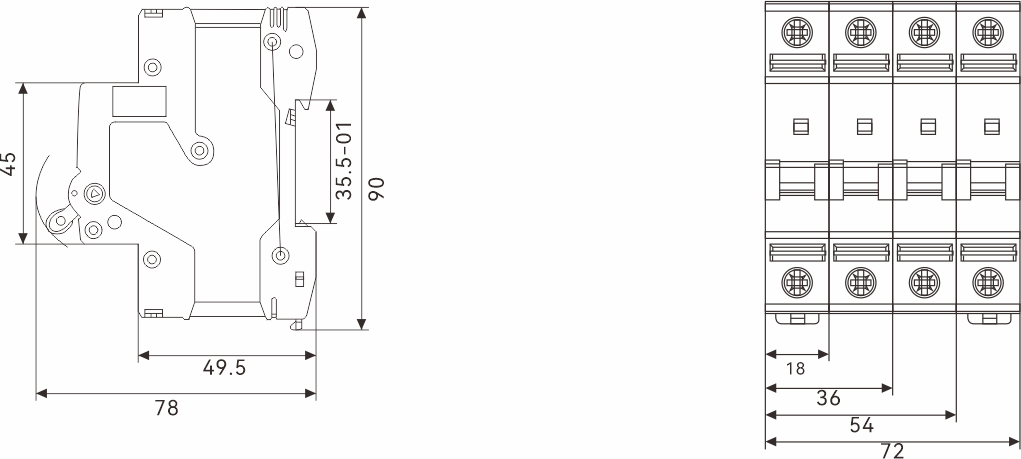

Dimensions
