TSB5-125 Miniture Circuit Breaker

Basic Information

Model TSB5-125

Application

TSB5-125 series MCB is used for AC 50/60Hz single pole 240V, 2P/3P/4P 415V for overload and short circuit protection. It can be used in lighting and electric motor distribution system. Meantime, it is applicable to an unfrequent switch over the electric apparatus and lighting circuit under normal condition. The products comply with IEC60898-1 or IEC60947-2.

Specification

Number of Poles	1P,2P, 3P, 4P
Rated Current	80A, 100A, 125A
Breaking Capacity	6000A
Rated Voltage	240V/415V

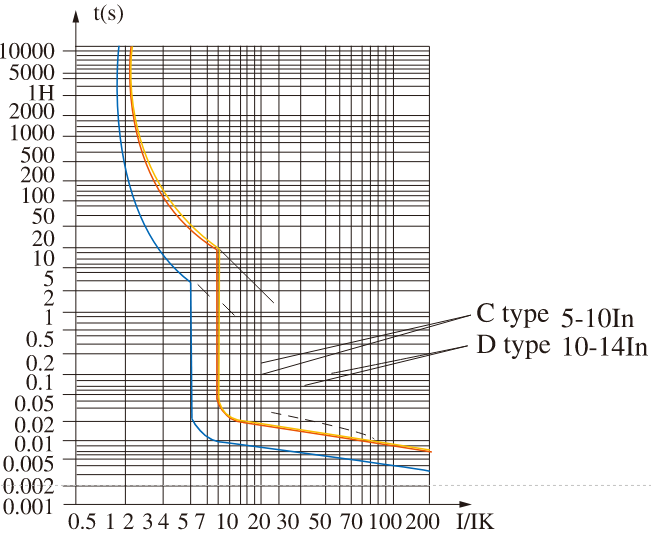

Curve Code	C, D
Endurance	20000
Circumstance Temperature	-5°C~+40°C
Mechanical Durability	6000 cycles
Electrical Durability	20000 cycles
Protection Degree IP 20	IP 20
