TSE1-D Magnetic Starter

Basic Information

Product Description

Application


TSE1-D magnetic starter is mainly applied to circuit of AC 50Hz or 60Hz, voltage up to
550V for far distance making and breaking circuit and frequently starting and control-
ling motor. It has the features of small volume, light weight, low power consumption,
high efficiency, safe and reliable performance etc.

Specification

Model

Rated

current(A)

Maximum power AC3 duty(KW)

Suitable

thermal

relay(A)

220V

230V

380V

400V

415V 440V 550V

660V

690V

TSE1-D09 9 2.2 4 4 4 5.5 5.5

TSR2-D1312

TSR2-D1314

TSE1-D12 12 3 5.5 5.5 5.5 7.5 7.5 TSR2-D1316
TSE1-D18 18 4 7.5 9 9 10 10 TSR2-D1321
TSE1-D25 25 5.5 11 11 11 15 15

TSR2-D1322

TSR2-D2353

TSE1-D32 32 7.5 15 15 15 18.5 18.5 TSR2-D2355
TSE1-D40 40 11 18.5 22 22 22 30

TSR2-D3353

TSR2-D3355

TSE1-D50 50 15 22 25 30 30 33

TSR2-D3357

TSR2-D3359

TSE1-D65 65 18.5 30 37 37 37 37 TSR2-D3361
TSE1-D80 80 22 37 45 45 55 45

TSR2-D3363

TSR2-D3365

TSE1-D95 95 25 45 45 45 55 45 TSR2-D3365
Standard control circuit voltages



Volts 24 42 48 110 220 230 240 380/400 400 415 440
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7

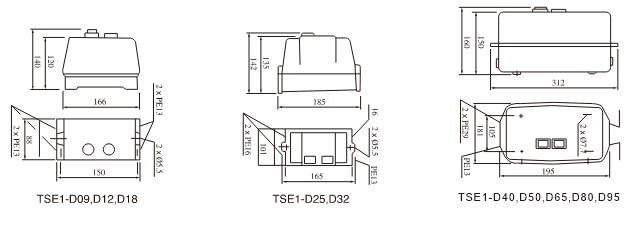

Dimension
