TSG1-125 Isolating Switch

Basic Information
  1. Rated Current (A) 50,63,80,100,125

Product Description

Application

TSG1-125 isolating switch is used as a main switch in distribution boxes for houses or as a switch for individual electric circuits.

Specification

Number of Poles 1P,2P,3P,4P
Rated Current (A) 50,63, 80, 100,125
Rated Voltage (V) 1P:240/415    2,3,4P: 415
Rated Frequency (Hz) 50/60
Utilization Category AC-22A
Icw 12le,t=0.1s
Rated Short-circuit Making Capacity Icn 20le, t=0.1s
Rated Making & Breaking Capacity 3le, 1.05Ue, COSΦ=0.65
Rated Insulation Voltage Ui (V) 690
Rated Impulse Withstand Voltage Uimp (V) 4000
Electrical Life (times) 1 500
Mechanical Life (times) 1 0000
Terminal Capacity Cables up to 50mm²
Ambient Temperature (°C) -25~+45, Max.95% humidity
Storage Temperature (°C) -40~+75
Altitude (meters) Max. 2000
Protection Degree IP20
Installation Mounting on 35mm Din Rail
Width 18mm per Pole
Standard EN/IEC60947-3
Upper Wiring                                                                                           Lower Wiring  1-25mm²

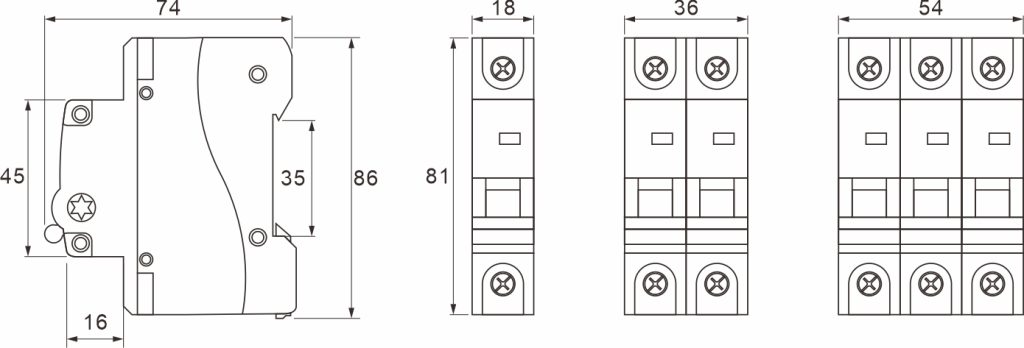

Dimensions
