TSM3E Electronic Type Moulded Case Circuit Breaker

Basic Information

Rated Operational Voltage 380/400/415V

Specification

Model		TSM3E-125		TSM3E-160		TSM3E-250		TSM3E-400		TSM3E-800
Number of Poles		3,4
Rated Current (A) In		32, 63, 100 125		32, 63, 160		250		250, 400		630, 800
Standard		IEC60947-2
Reference Temperature		40ºC/55ºC
Rated Operational Voltage		380/400/415VAC
Rated Insulation Vqltage Ui (VAC)		800
Rated Impluse Withstand Voltage Uimp(kV)		8
Breaking Capacity level		M	H	M	H	M	H	M	H	M	H
Rated Ultimate Short- circuit Breaking Capacity Icu(kA)		50	80	50	80	50	85	85	100	85	100
Rated Service Short -circuit Breaking Capacity Ics (kA)		35	50	35	50	35	50	60	75	60	75

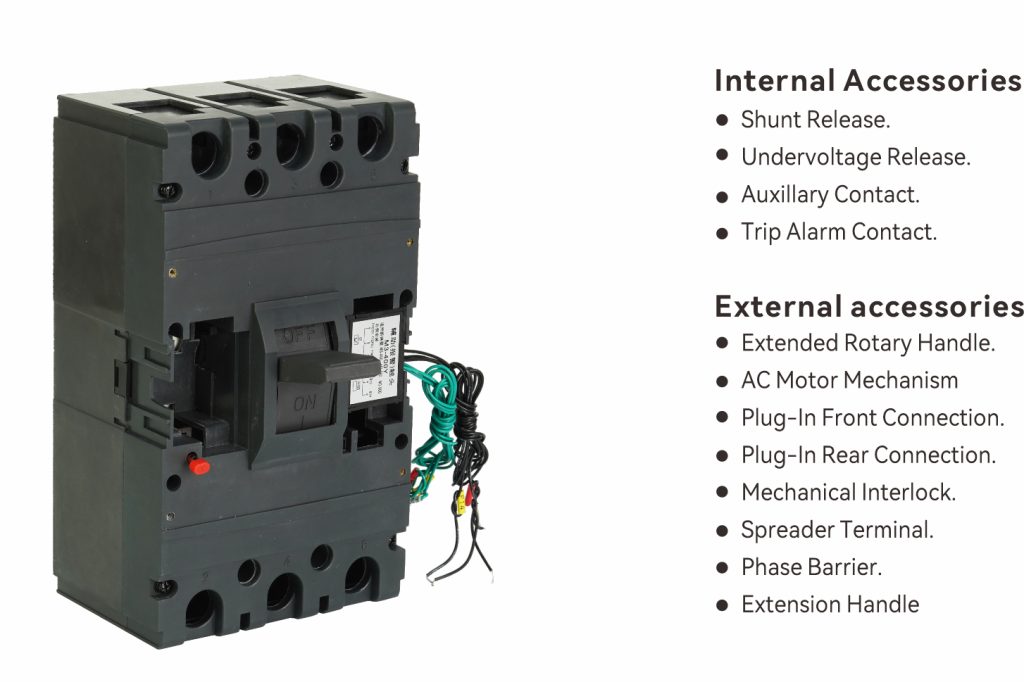

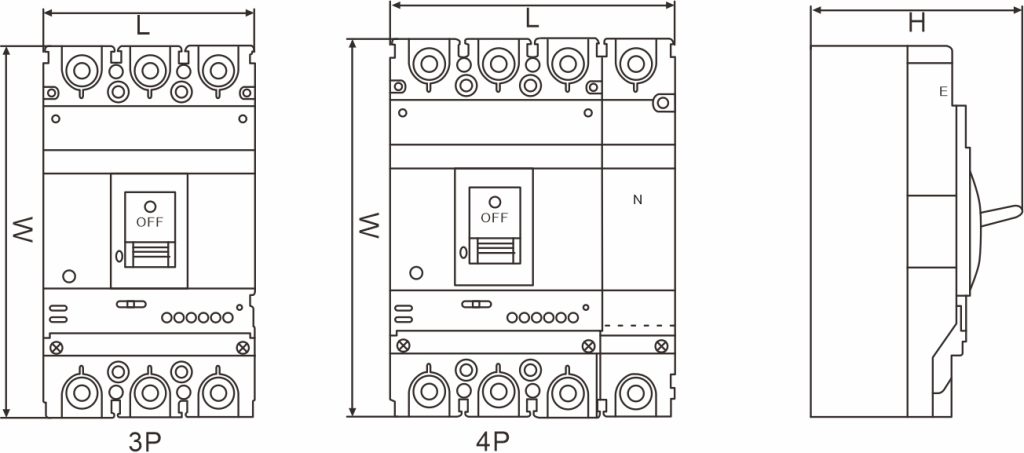

Dimensions (LxWxH)	3P	92x150x92		92x150x92		107x165x90		150x257x148		210x280x155
	4P	122x150x92		122x150x92		143x165x90		198x257x148		280x280x155
