TSM3S Thermal Adjustable Type Moulded Case Circuit Breaker

Basic Information
  1. Standard IEC60947-2

Product Description

Specification

Model  TSM3S-125  TSM3S-160 TSM3S-250 TSM3S-400 TSM3S-630 TSM3S-800
Number of Poles 3,4
Rated Current (A) In 16,20,25, 32, 40,50, 63, 75, 80, 100,125 63, 80,100, 125,140, 150, 160 100,125, 150, 160, 175, 200, 225,250 250,280, 300, 315, 350, 400 400, 500, 550,630 630,700,     770, 800
Thermo-adjustable
setting lr(xln)
0.8/0.9/1.0
Standard IEC60947-2
Reference Temperature 40ºC/55ºC
Rated Operational Voltage 380/400/415VAC
Rated Insulation Vqltage Ui (VAC) 800
Rated Impluse Withstand Voltage Uimp(kV) 8
Breaking Capacity level L M L M L M M H M H M H
Rated Ultimate Short- circuit Breaking Capacity Icu(kA) 10 25 36 50 36 50 85 100 85 100 85 100
Rated Service Short -circuit Breaking Capacity Ics (kA) 10 18 27 36 27 36 60 75 60 75 60 75

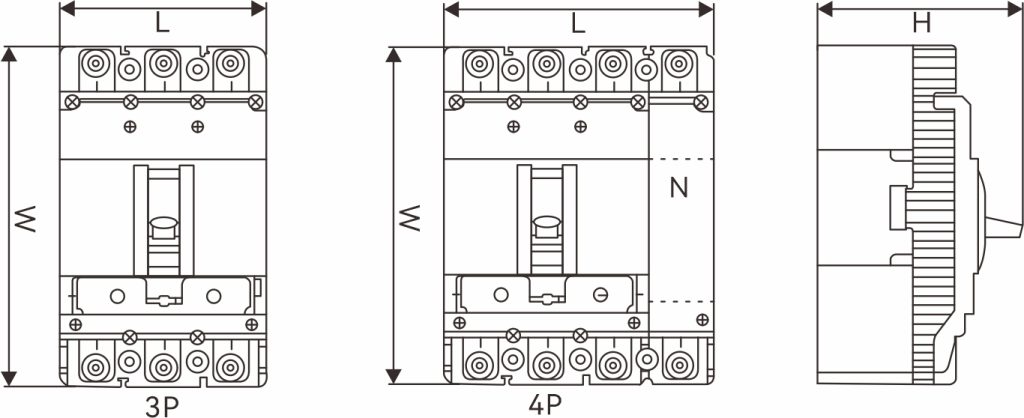

Dimensions  (LxWxH) 3P 75x133x82 L: 92x150x90 M:92x150x110 L:106x165x109 M:107x165x127 150x257x148 150x257x148 210x280x155
4P 100x133x82 L:122x150x90 M:122x150x110 L:141x165x109 M:141x165x127 198x257x148 198x257x148 280x280x155
