TSN2-63L Residual Current Operated Circuit Breaker (RCBO)

Basic Information
  1. Number of Poles 1P+N

Product Description

Application

TSN2-63L RCBO is used in the single phase circuit of AC 50/60Hz, rated voltage 240V, as electron shock protection. It can protect circuit from overload and short circuit. This product has advantages of small volume, high breaking capacity, It cuts odd the live and zero wire at the same time. It also protects person from electric shock when the live wire connected opposite. The products comply with the standards of IEC61009.

Both RCCBs and RCBOs are divided into types depend on the operating functions:
Type AC: For which tripping is ensured for residual sinusoidal alternating currents. Whether suddenly applied or slowly rising is happened.
Type A: For which tripping is ensured for residual sinusoidal alternating currents and residual pulsating direct currents. Whether suddenly applied or slowly rising is happened.

Specification

Model TSN2-63L
Number of Poles 1 P+N
Rated Current (A) 6,10,16,20,25,32,40, 50,63
Rated Residual Operating Current (I△n)(mA) 30
Rated Residual Non-operation Current(l△no)(mA) 15
Type AC , A
Rated Voltage (V) 240
Residual Current Off-time (S) ≤0.1
Short Circuit Capacity (Icu) (A) 6000
Characteristic B, C
Protection Degree IP20
Upper Wiring 1-25mm²

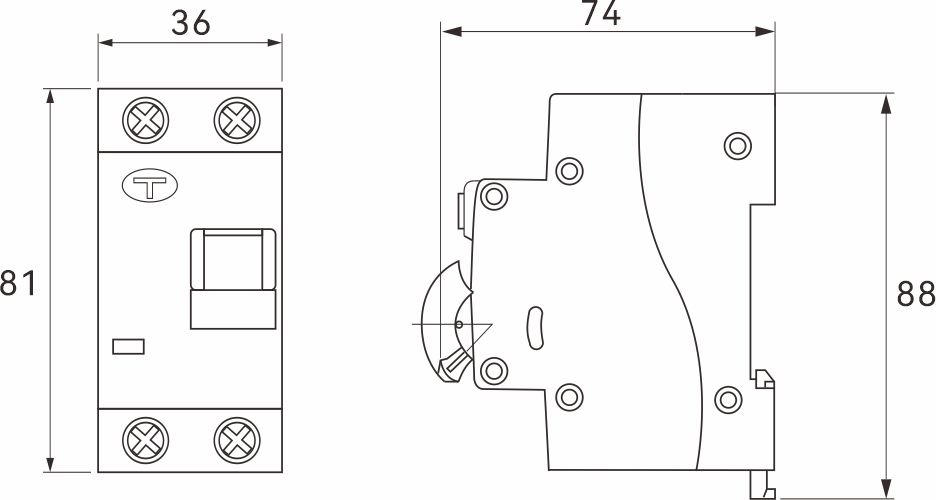

Dimensions
