Product Description
Application
TSN3-40 series MCB is an extensive range of DIN rail mounted, phase-neutral miniature circuit breaker. Boasting exclusive features, they provide absolute protection to circuits against short-circuit currents and overload currents in both residential and small building applications.
Specification
| Number of Poles | 1P+N |
| Rated Current (A) | 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32 |
| Rated Operational Voltage | 230V/240V |
| Trip Unit Technology | Thermal-magnetic |
| Curve Code | B, C, D |
| Standards | IEC/EN 60898-1 |
| Network Frequency | 50/60Hz |
| Breaking Capacity | Icn=Ics=3000A |
| [Ui] Rated Insulation Voltage | 415V AC |
| [Uimp] Rated Impulse Withstand Voltage |
4000V |
| Mechanical Durability | 10000 cycles |
| Electrical Durability | 4000 cycles |
| Tightening Torque | M4 2N.m Ⅱ |
| IP Degree of Protection | IP20 comforming to IEC 60529 IP40(modular enclosure) comforming to IEC 60529 |
| Ambient Air Temperature for Operation | -5~40°C |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Pollution Degree | 2 comforming to IEC/EN 60898-1 |
|
Upper Wiring Lower Wiring |
 1-16mm² |

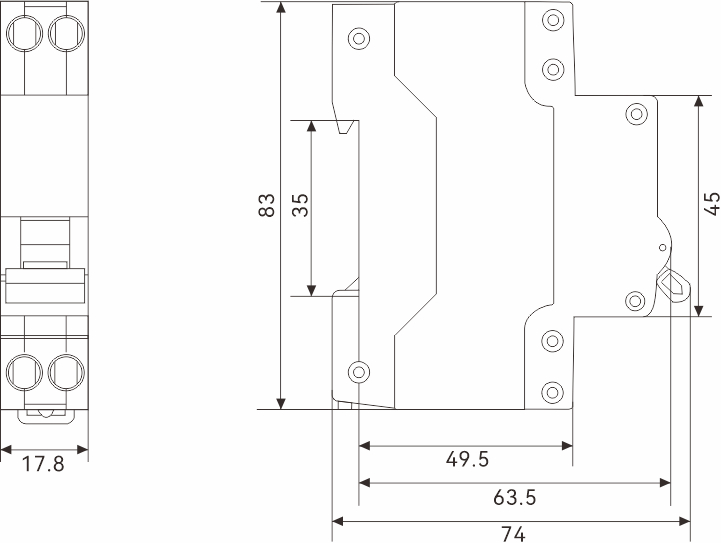

Dimensions
