TSN3-40L Residual Current Operated Circuit
Breaker (RCBO)

Basic Information
  1. model TSN3-40L
Get a Quote

Product Description

Application

Slim DIN mounted RCBO is available as single module devices to save valuable switchboard space.

Specification

Number of Poles 1 P*N
Rated Current 6A  1 0A  1   A. 20A  25H. 32A. 40A
Rated Operntional Voltage 230V/240～
Earth-leakage  Sensitivity 10mA,30maA,100mA
Trip Unit Technology Electronic
Network Type AC/A
Standards IEC/EN 61009-1

Breaking Capacity

 Icn =Ics=6000 A
【U i】Rated Insulation Voltage 415 V AC
【Uimp】 Rated impulse Withstand Voltage 4000V
Mechanical Durability 20000 cycles
Electrical Durability 10000 cycles
Tightening Torque M4 2N. m Il
IP Degree of Protection IP20 conforming to IEC 60529
IP40/mo4ular enclosure; conilor i  ing to IEC â0529
Curve Code B,C
Ambient Air Temperature for operation -5～40℃
EU RoHS Directive Compliant EU RoHS Declaration
Pollulion Degree 2 comforming to IEC/EN 60898-1

Upper Wiring

Lower Wiring

 1-16mm2

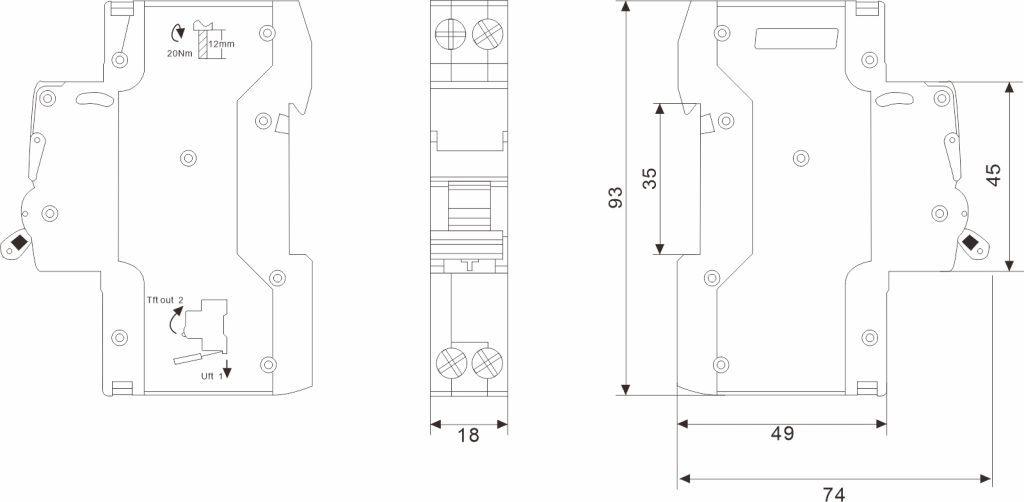

Dimension
