TSN3-63L Residual Current Operated Circuit
Breaker (RCBO)

Basic Information
  1. Model TSN3-63L

Product Description

Application

TSN3-63L RCBO is used in the single phase circuit of AC 50/60Hz, rated voltage 240V, as electron shock protection. It can protect circuit from overload and short circuit. This product has advantages of small volume and high breaking capacity. It cuts off the live wire and zero wire at the same time. It also protects person from electric shock when the live wire is connected opposite. The products comply with the standards of IEC61009.

Specification

Number of Poles 1P+N
Rated Current 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Earth-leakage Sensitivity 30mA, 100mA, 300mA
Trip Unit Technology Electronic
Network Type AC  ~  /A  ~
Rated Voltage 230V~ 240V~
Residual Current Off-time 0.1s
Short Circuit Capacity (Icu) 4500A
Characteristic B, C
Mechanical Durability 10000 cycles
Electrical Durability 3000 cycles
Protection Degree IP20
Upper Wiring
Lower Wiring
1-25mm²

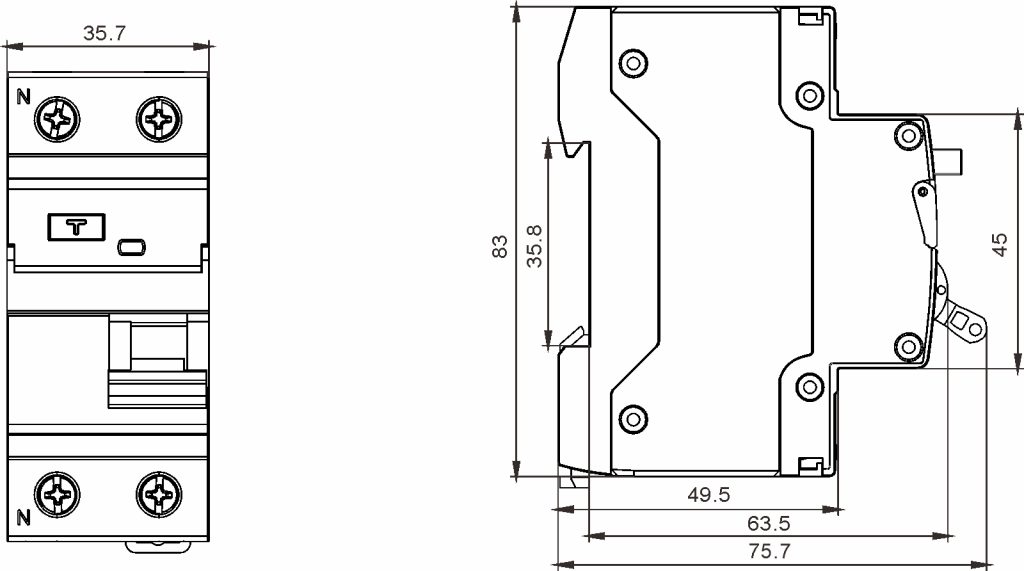

Dimensions
