TSN4-40L Residual Current Operated Circuit Breaker (RCBO)
Basic Information
- Rated Breaking Capacitor 6000A
Product Description
Application
Designed for DIN rail distribution boards, the TSN4-40L range of RCBO provides maximum protection and continuity of service while minimizing service intervention time.
Specification
| Number of Poles | 1P+N |
| Line Rated Current(A) | 6A, 10A, 16A, 20A, 25A, 32 |
| Rated Operational Voltage | 230V/240V~ |
| Earth-leakage Sensitvity | 10mA, 30mA, 100mA |
| Trip Unit Technology | Thermal-magnetic |
| Network Type | AC/A |
| Standards | IEC/EN 61009-1 |
| Network Frequency | 50/60Hz |
| Rated Breaking Capacity(Icn) | 6000A |
| Rated Residual Breaking and Making Capacity(I△m) |
500A |
| [Ui] Rated Insulation Voltage | 400V |
| [Uimp] Rated Impulse Withstand Voltage |
4000V |
| Mechanical Durability | 10000 cycles |
| Electrical Durability | 4000 cycles |
| Tightening Torque | M4 2N.m Ⅱ |
| Curve Code | B,C |
| IP Degree of Protection | IP20 comforming to IEC 60529 IP40(modular enclosure) comforming to IEC 60529 |
| Ambient Air Temperature for Operation |
-5~40°C |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Pollution Degree | 2 comforming to IEC/EN 60898-1 |
|
Upper Wiring Lower Wiring |
 1-16mm²  |

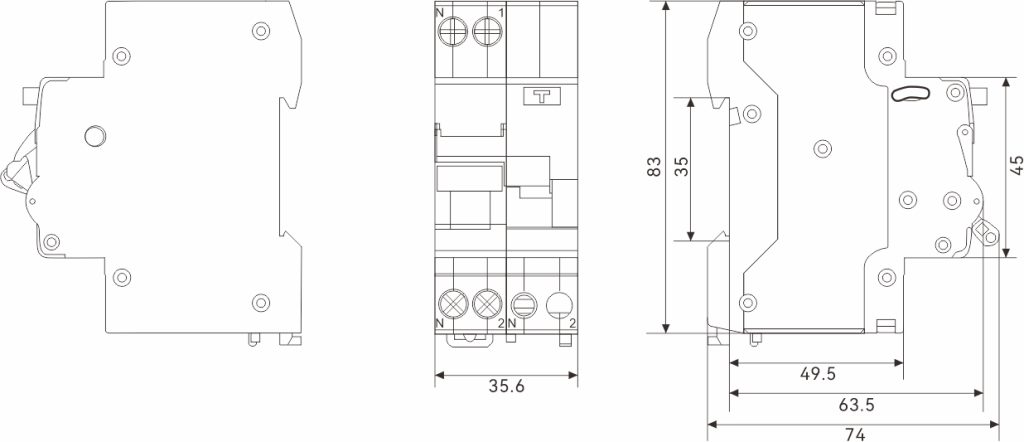

Dimensions
