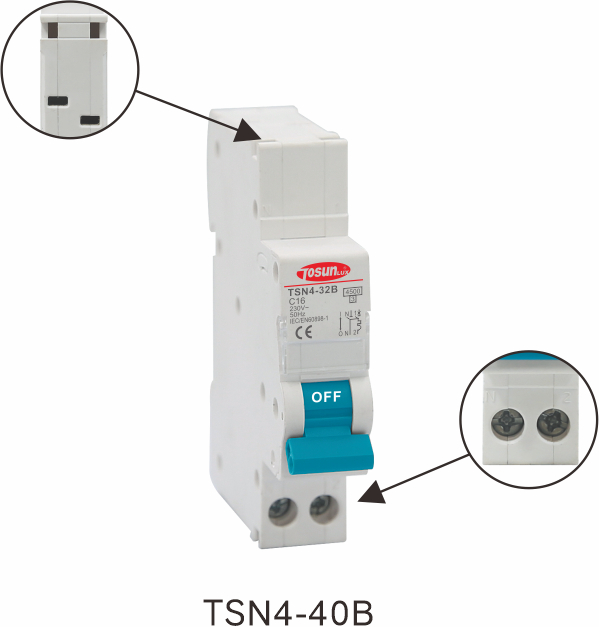

TSN4-40 Miniature Circuit Breaker

Basic Information
  1. Breaking Capacitor Icn=Ics=4500/6000A

Product Description

Application

TSN4-32 series MCB is an all new high performance current limiting device with the ability to disconnect short circuits up to 4.5/6kA. Thermal trip unit is for normal overload protection and magnetic trip unit is for short circuit protection.

Specification

Number of Poles 1P+N
Rated Current (A) 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40
Rated Operational Voltage 230V/240V
Trip Unit Technology Thermal-magnetic
Curve Code B, C, D
Standards IEC/EN 60898-1
Network Frequency 50/60Hz
Breaking Capacity Icn=Ics=4500/6000A
Energy Limiting Class I2t: 3 comforming to IEC/EN 60898-1
[Ui] Rated Insulation Voltage 415V AC
[Uimp] Rated Impulse
Withstand Voltage
4000V
Mechanical Durability 20000 cycles
Electrical Durability 10000 cycles
Tightening Torque M4 2N.m Ⅱ
IP Degree of Protection IP20 comforming to IEC 60529
IP40(modular enclosure) comforming to IEC 60529
Ambient Air Temperature for Operation -5~40°C
EU RoHS Directive Compliant EU RoHS Declaration
Pollution Degree 2 comforming to IEC/EN 60898-1

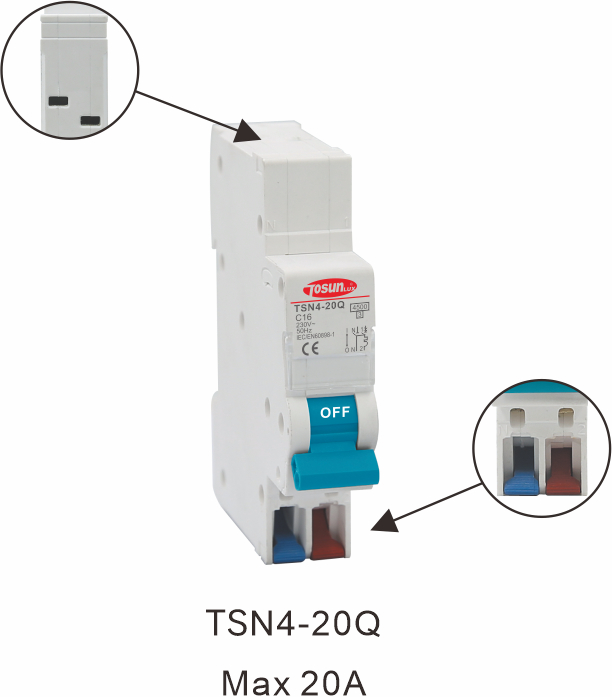

Upper Wiring                        Lower Wiring   1-16mm²

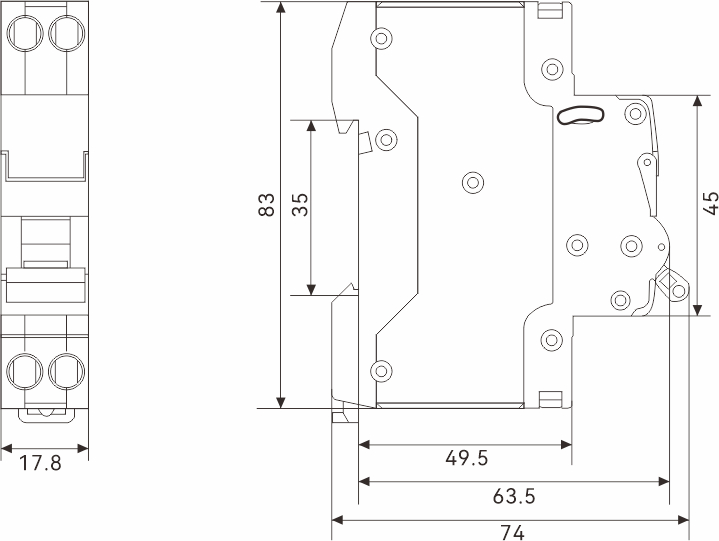

Dimensions
