TTD Terminal Block

Basic Information
  1. Model TTD

Product Description



Specification

Model Qty of Hole Rated Current Max. Section Dimension W xH xL Diameter of Connections Per Busbar

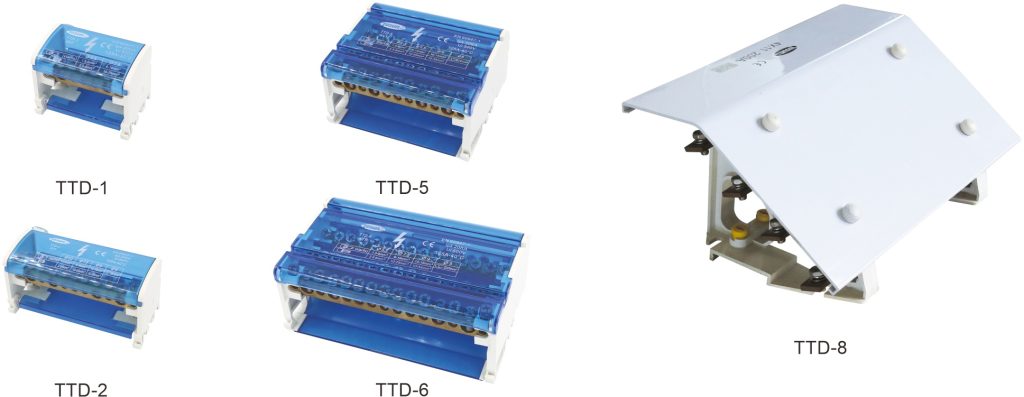

TTD-1 2×7 100A 35mm² 67x45x50 5/5.3,2/7.5
TTD-2 2×11 125A 35mm² 100x45x50 7/5.3, 4/7.5,
TTD-3 2×15 125A 35mm² 134x45x50 11/5.3,2/7.5, 2/8.5
TTD-4 4×7 100A 35mm² 67x85x50 5/5.3,2/7.5
TTD-5 4×11 125A 35mm² 100x90x50 7/5.3, 4/7.5
TTD-6 4×15 125A 35mm² 134x90x50 11/5.3,2/7.5, 2/8.5
TTD-7 4×13 160A 50mm² 180x138x73 8/7 4/9 1/12

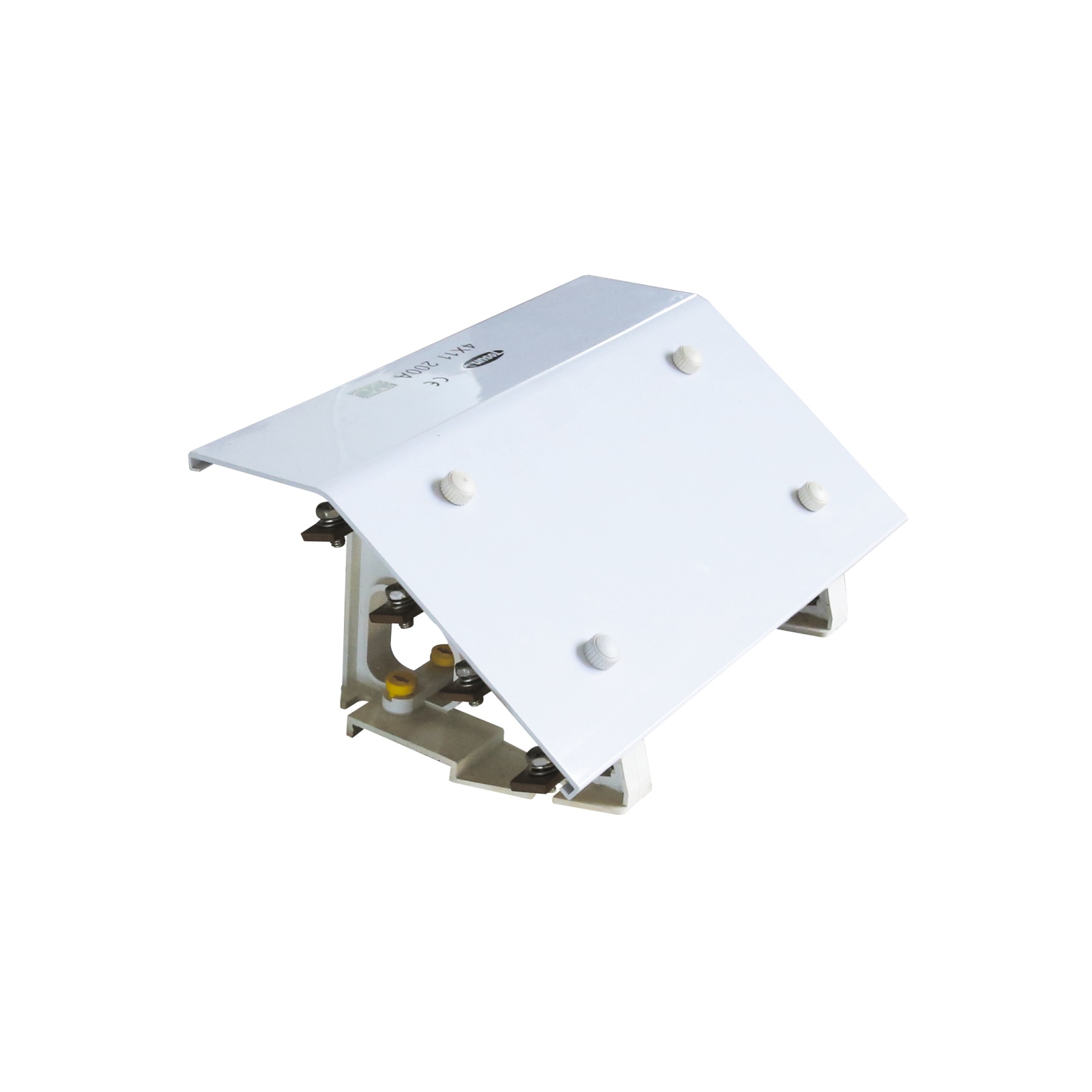

TTD-8 4×11 200A 75mm² 270x130x75 10/M6,1/M8
TTD-9 4×11 250A 100mm² 270x130x75 10/M6, 1/M10
TTD-10 4×10 400A 180mm² 270x130x75 9/M6, 1/M10
