Vehicle DC Fuse

Basic Information
  1. Model HEV,JEV
  2. Voltage DC150V~DC750V

Product Description

Application

The product provides safer and more reliable protection for overload and short-circuit current faults of electric vehicle lithium battery packs, super capacitor circuits, charging circuits, DC-DC inverters and other devices.
Applicable Environment:temperature -35°C~+85°C,humidity ≤90%

Specification

Model  Voltage Current range A B C D E F G
HEV8 DC150V 4A 8A 10A 15A 20A 45.5±1.0 37±1.0 28±1.0 8.5±0.2 9±0.5 4.2±0.2 6±0.2
HEV16S DC150V 20A25A 32A 40A 50A 63A 80A 100A 160A 180A 56.5±1.0 41.5±1.0 28±1.5 17.8±0.3 19±0.7 9.5±0.3 6.5±0.3
HEV35S DC200V 200A 250A 300A 350A 400A 83.5±1.5 58.5±1.5 31.5±1.5 37 8±0.3 41.2±0.7 10±0.2 13±0.2
HEV10 DC500V 10A 15A 20A 25A 30A 40A 50A 65±1.0 53.5±1. 0 39.4±1.0 10.4±0.1 13.6±0.3 5.2±0.2 6.6±0.2
HEV16 DC500V 20A 25A 32A 40A 50A 63A 80A 100A 76±1.5 63±1.5 51±1.5 17.8±0 3 19±0.7 9.5±03 6.5±0.3
HEV20 DC500V 50A 63A 80A 100A 125A 150A 98±1.5 76. 5±1.5 47±1.5 23.5±0.3 26.3±0.7 9.5±0.3 14±0.3
HEV35 DC500V 200A 250A 300A 350A 400A 108±1.5 82±1.5 53±1.5 37.8±03 40.7±0.7 10±0.2 13±0.2
HEV14S  DC750V 10A 18A 20A 25A 32A 40A 50A 63A  75±1.0 63±1.0 51±1.0 14.4±0.1 17±0.3 6.5±0.2 7.5±0.2

Model Voltage Current range A B C D E F
JEV20 DC500V 50A 63A 80A 100A 125A 150A 81±1.5 60.2±1.5 40. 5±1.5 22.5±03 8.8±0.2 10.8±0.2
JEV28 DC500V 100A 150A 200A 250A 91.5±1.5 73.5±1.5

52.5±1.5

30.7±03 9±0.2 11±0.2
JEV35S DC500V 200A 250A 300A 350A 400A 102±1.5 78±1.5 51±1.5 37.8±0.3 11±0.2 16±0.2
JEV48S DC500V 400A 450A 500A 550A 600A 108±1.5 78±1.5 54±1.5 50. 6+0.3 11±0.2 16±0.2
JEV20L DC750V 50A 63A 80A 100A 125A 150A 114±1.5 93.2±1.5 73±1.5 22.5±0.3 8.8±0.2 10.8±0.2
JEV28L DC750V 100A 150A 200A 250A 110±1.5 92±1.5 71±1.5 30.7±0.3 9±0.2 11±0.2
JEV35 DC750V 200A 250A 300A 350A 400A 122±1.5 98±1.5 71±1.5 37.8±10.3 11±0.2 16±0.2
JEV48 DC750V 400A 450A 500A 550A 600A 128±1.5 98±1.5 74±1.0 50.6±0.3 11±0.2 16±0.2

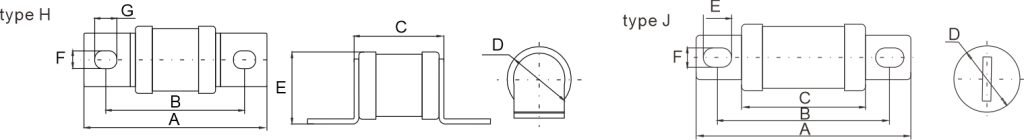

Dimensions

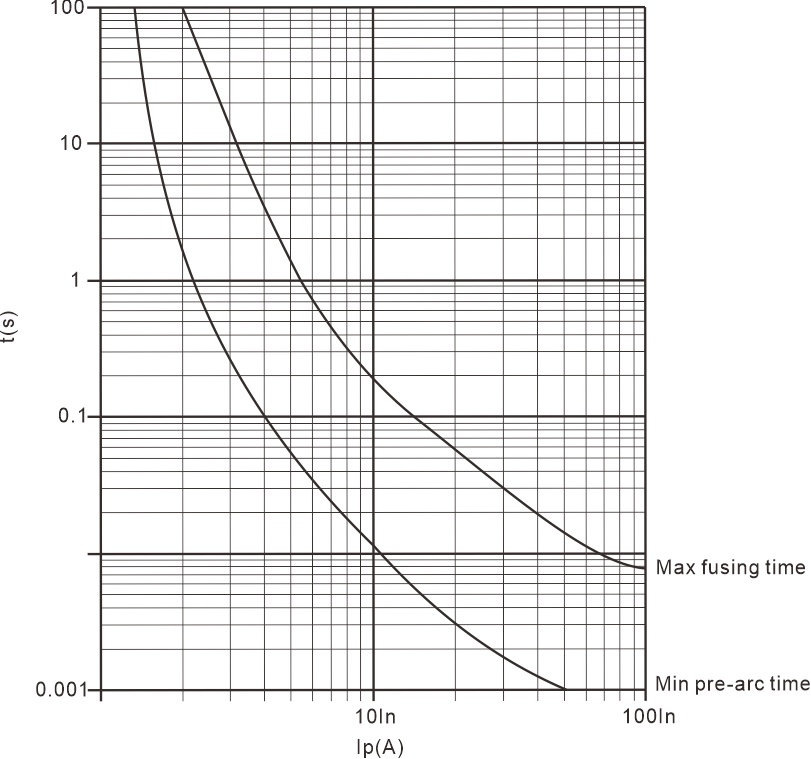

Time current characteristic curve

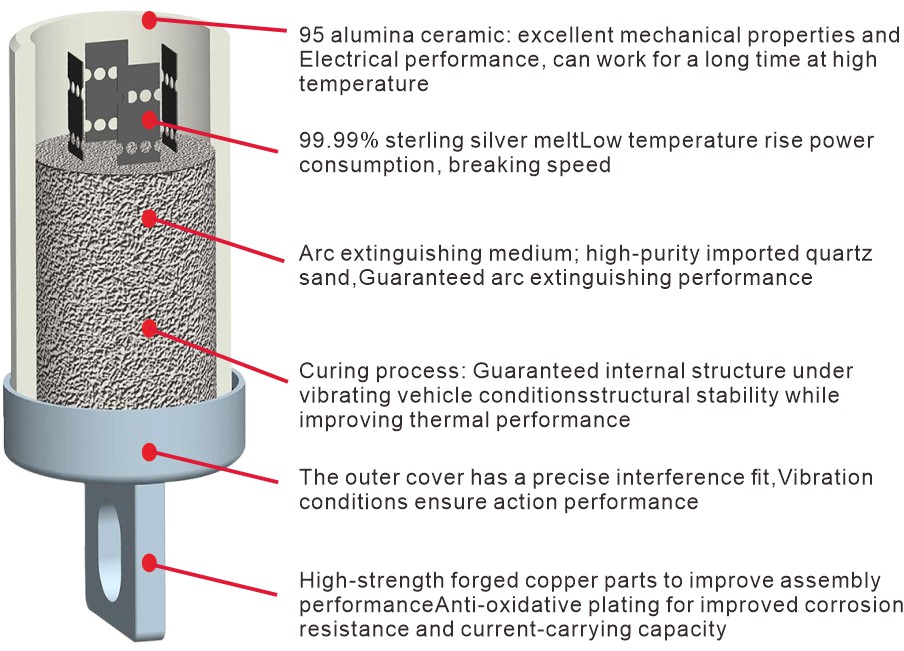

Schematic
