Wiring Duct(Slotted)

Basic Information
  1. Model PXC2

Product Description

·Material: High-quality PVC

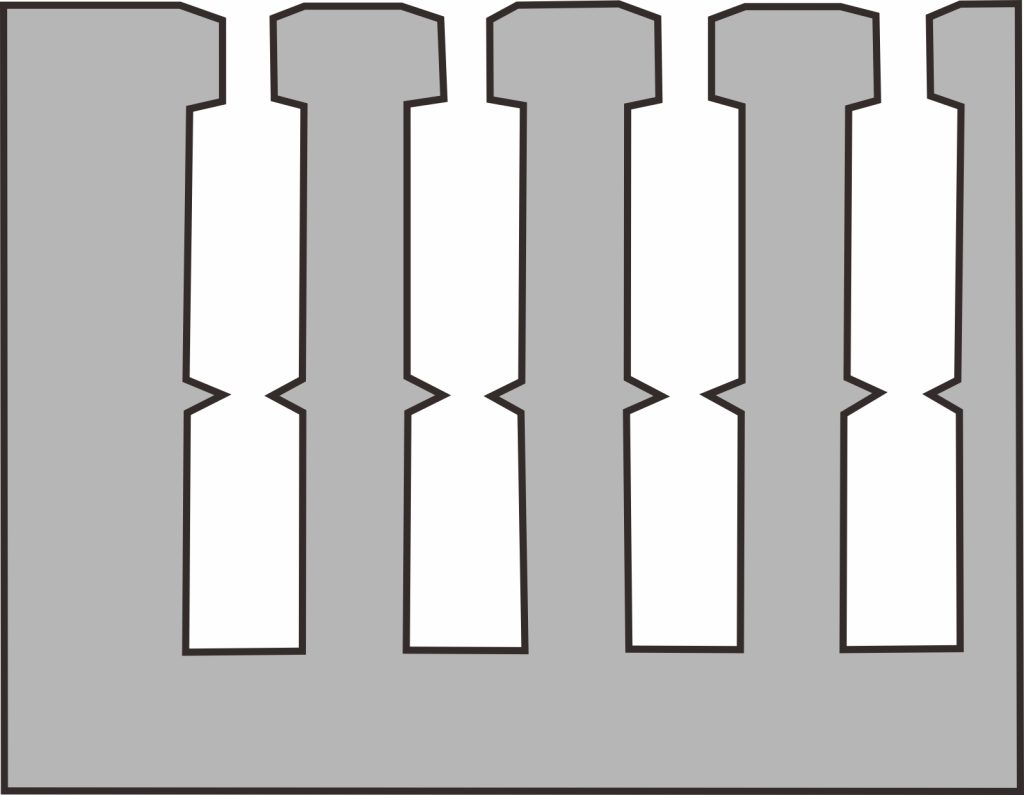

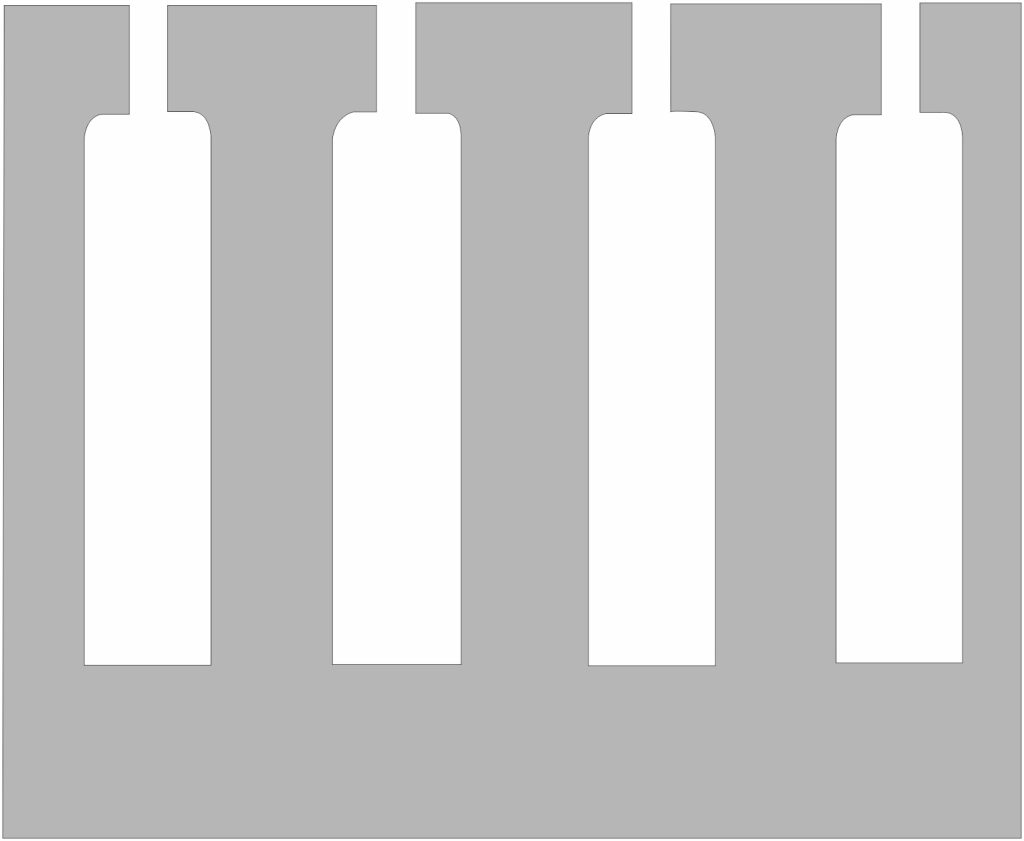

· Structure: Consists of cover and bottom,features parallel holes on both sidewalls to facilitate cutting in wire application.

Advantage: 1.Up to 2500V insulation.Maximun service temperature to 550°C. Warp-proof UL-94-V0.

2.Good design and advanced process,strongly united for cover and bottom,smoothly covers,no edges,all that protect the wires efficiency.

3.Low slotted, easy combination, simple assembled.

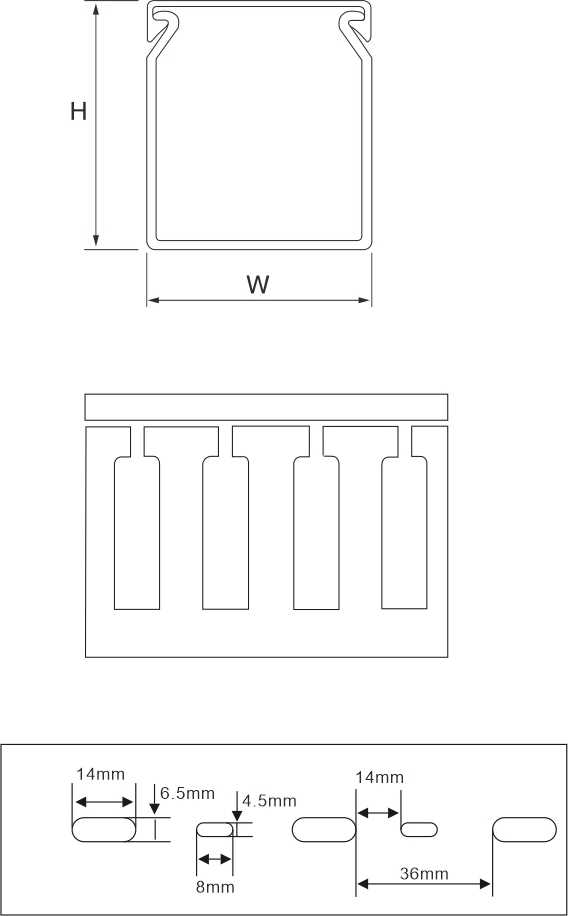

Model HxW Contained Wire (1.5mm²) Length
PXC2-2015 20×15 5-12pcs 2meters
PXC2-2525 25×25 10-25pcs
PXC2-3015 30×15 5-15pcs
PXC2-3020 30×20 10-20pcs
PXC2-3025 30×25 15-25pcs
PXC2-3030 30×30 20-30pcs
PXC2-3035 30×35 25-40pcs
PXC2-3525 35×25 15-25pcs
PXC2-3535 35×35 20-25pcs
PXC2-4025 40×25 20-25pcs
PXC2-4030 40 30 40-45pes
PXC2-4035 40×35 40-45pcs
PXC2-4040 40×40 60-70pcs
PXC2-4545 45×45 70-90pcs
PXC2-5020 50×20 15-20pcs
PXC2-5025 50×25 20-25pcs
PXC2-5030 50×30 30-40pcs
PXC2-5035 50×35 50-60pcs
PXC2- 5040 50×40 60-70pcs
PXC2-5045 50×45 70-80pcs
PXC2-5050 50x 50 80-90pcs
PXC2-5055 50×55 90-100pcs
PXC2-5060 50×60 100-120pcs
PXC2- 5080 50×80  150-200pcs
PXC2-50100 50×100 200-250pcs
PXC2-6025 60×25 30-40pcs
PXC2-6030 60×30 30-50pcs
PXC2-6035 60×35 60-80pcs
PXC2-6040 60×40 100-110pcs
PXC2-6045 60×45 110-120pcs
PXC2-6050 60×50 110-125pcs
PXC2-6060 60×60 110-120pcs
PXC2-6545 65×45 100-130pcs
PXC2-8025 80×25 100-120pcs
PXC2-8040 80×40 120-135pcs
PXC2-8045 80×45 120-140pcs
PXC2-8050 80×50 130-180pcs
PXC2-8055 80×55 135-190pcs
PXC2-8060 80×60 180-210pcs
PXC2-8080 80×80 240-290pcs
PXC2-80100 80×100 260-350pcs
PXC2-10050 100×50 130-180pcs
PXC2-10060 100×60 240-290pcs
PXC2-10080 100×80 260-350pcs
PXC2-100100 100×100 300-400pcs
